Engine Cooling System — Radiator (Aluminum type)
LC-11parts diagramOil cooler components (oil cooler, O-ring, conical washer, washer, oil cooler securing nut) apply to A/T model only.
Radiator (Aluminum type)

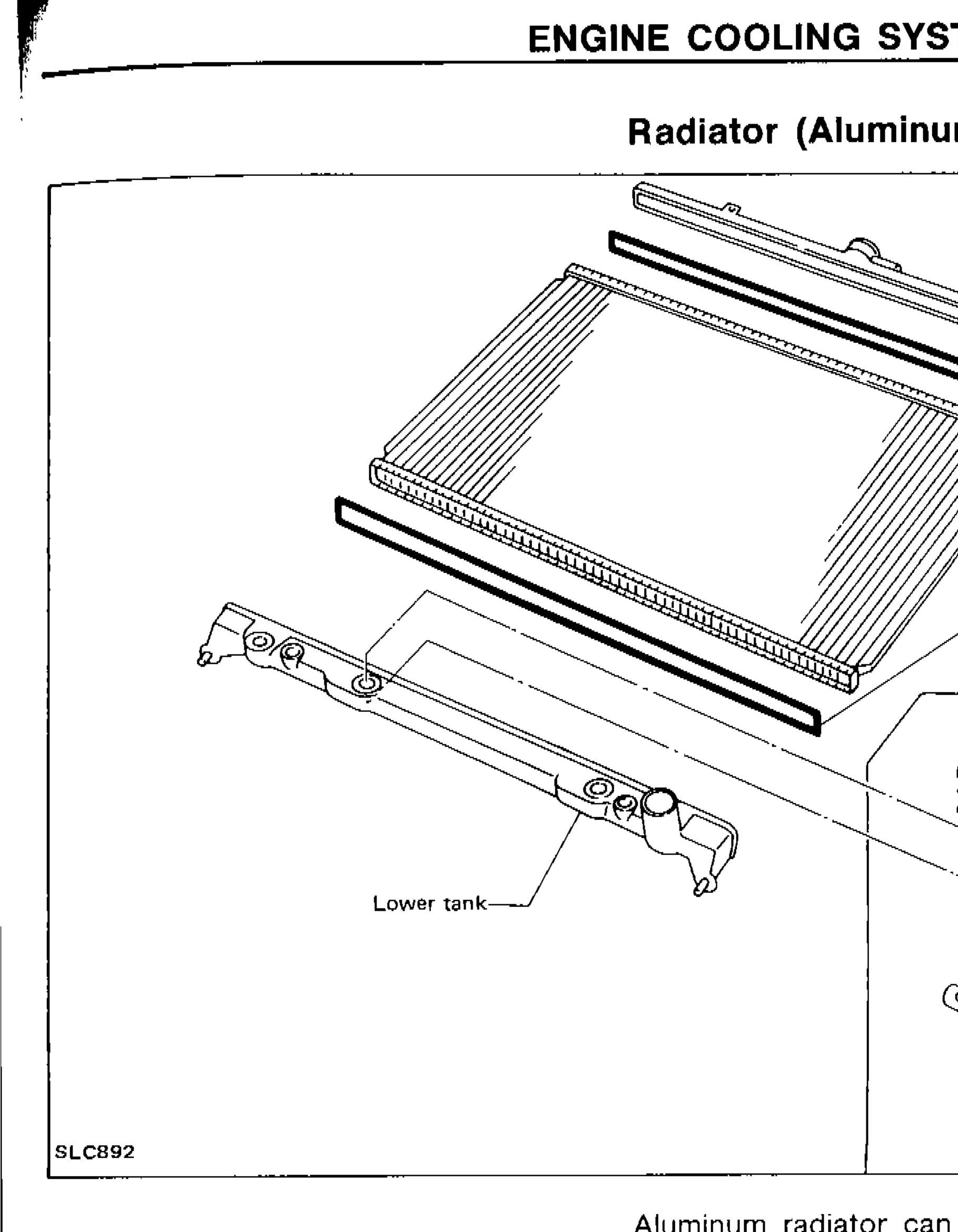

Parts DiagramFig. fig1
| # | Part Name | Notes / Torque |
|---|---|---|
| 1 | Upper tank | — |
| 2 | Sealing rubber | Replace if worn or damaged |
| 3 | Core | — |
| 4 | Sealing rubber | Replace if worn or damaged |
| 5 | Oil cooler securing nut | Torque: 8 - 12 N·m (0.8 - 1.2 kg·m, 5.8 - 8.7 ft·lb) |
| 6 | Conical washer | Replace if worn or damaged |
| 7 | Washer | — |
| 8 | O-ring | Replace if worn or damaged |
| 9 | Oil cooler | A/T model only |
| 10 | Lower tank | — |
| Specification | Value |
|---|---|
| Oil cooler securing nut torque | 8 - 12N·m |
| Oil cooler securing nut torque | 0.8 - 1.2kg·m |
| Oil cooler securing nut torque | 5.8 - 8.7ft·lb |
Oil cooler securing nut torque
8 - 12N·m
Oil cooler securing nut torque
0.8 - 1.2kg·m
Oil cooler securing nut torque
5.8 - 8.7ft·lb
Aluminum radiator can be disassembled by using special procedures and special service tools.
Disassembly

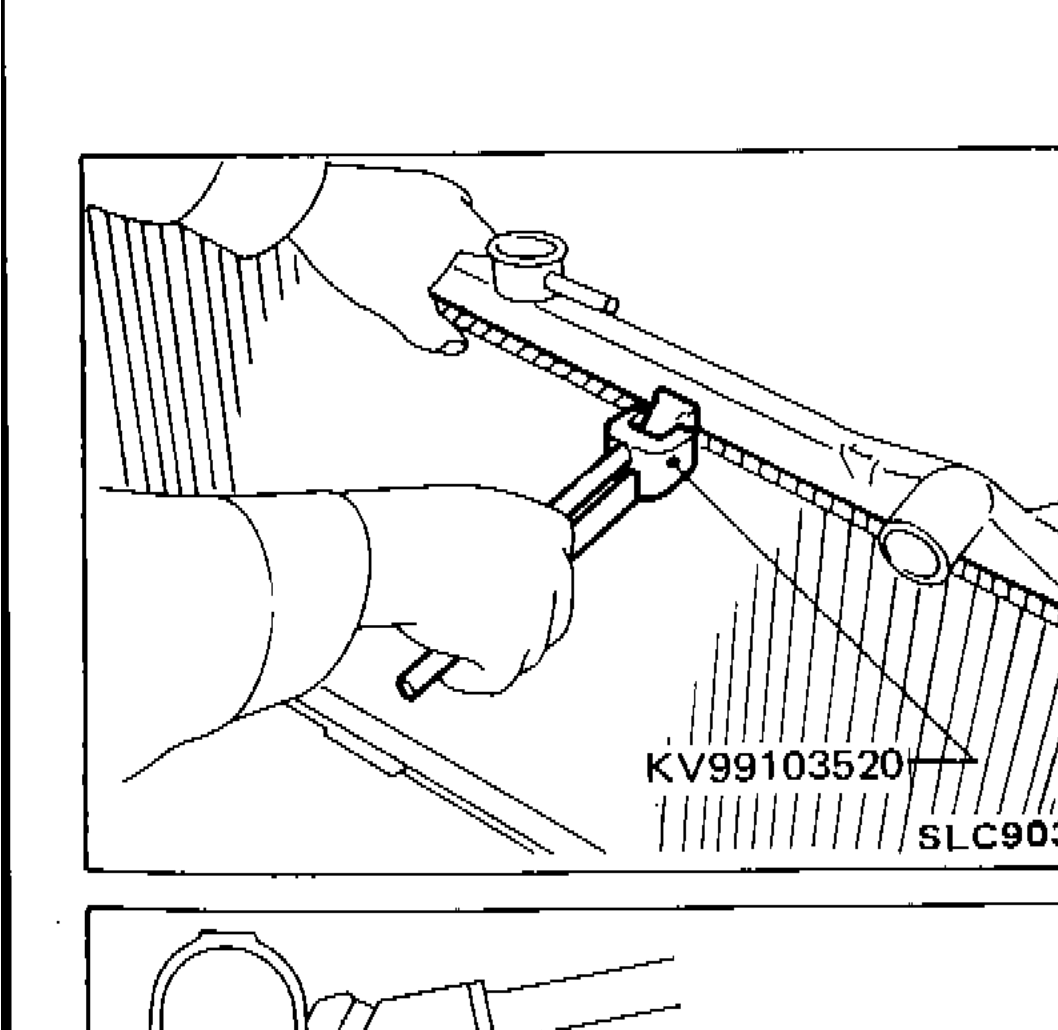

- 1Remove tank with Tool.Grip the crimped edge and bend it upwards so that Tool slips off. Do not bend excessively.
SLC903
IMPORTANT
Grip the crimped edge and bend it upwards so that Tool slips off. Do not bend excessively.
