ENGINE LUBRICATION SYSTEM
LC-4prose procedureOil Pressure Check (Cont'd)

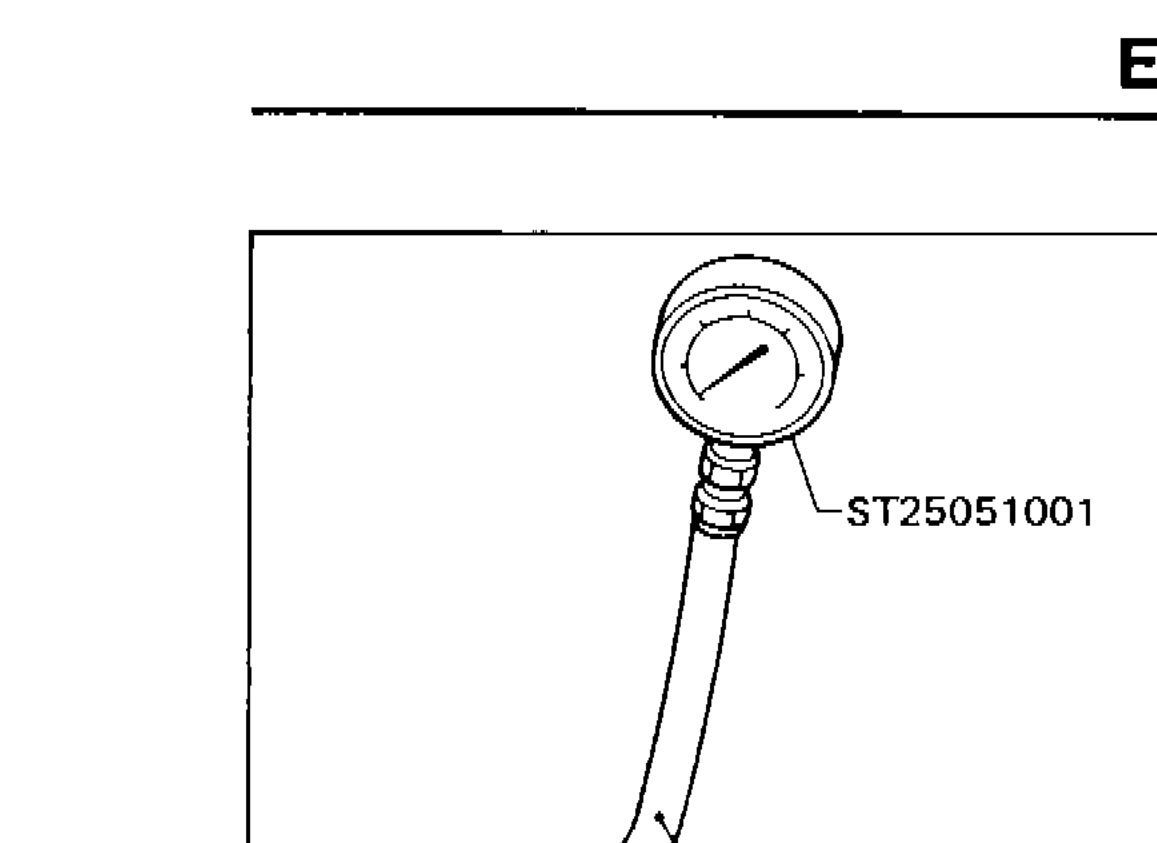

- 3Install pressure gauge.
SLC926 - 4Start engine and warm it up to normal operating temperature.
- 5Check oil pressure with engine running under no-load.
Oil Pressure Specifications
| Engine rpm | Approximate discharge pressure kPa (bar, kg/cm², psi) |
|---|---|
| Idle speed | More than 78 (0.78, 0.8, 11) |
| 3,000 | 353 - 412 (3.53 - 4.12, 3.6 - 4.2, 51 - 60) |
Idle speed
Approximate discharge pressure kPa (bar, kg/cm², psi)More than 78 (0.78, 0.8, 11)
3,000
Approximate discharge pressure kPa (bar, kg/cm², psi)353 - 412 (3.53 - 4.12, 3.6 - 4.2, 51 - 60)
IMPORTANT
If difference is extreme, check oil passage and oil pump for oil leaks.
Oil Pressure Switch Installation
- 6Install oil pressure switch with sealant.Use proper liquid sealant.
| Specification | Value |
|---|---|
| Oil pressure switch torque | 10 - 16N·m |
| Oil pressure switch torque | 1.0 - 1.6kg-m |
| Oil pressure switch torque | 7 - 12ft-lb |
Oil pressure switch torque
10 - 16N·m
Oil pressure switch torque
1.0 - 1.6kg-m
Oil pressure switch torque
7 - 12ft-lb
Oil Pump
REMOVAL AND INSTALLATION
Oil Pump Removal and Installation
- 1Remove drive belts.
- 2Remove timing belt covers and timing belt.
- 3Remove front stabilizer bar.
SLC200A - 4Loosen front engine mounting nuts. (Do not loosen nuts completely.)
- 5Lift up engine slightly using engine slings.
- 6Remove oil pan.

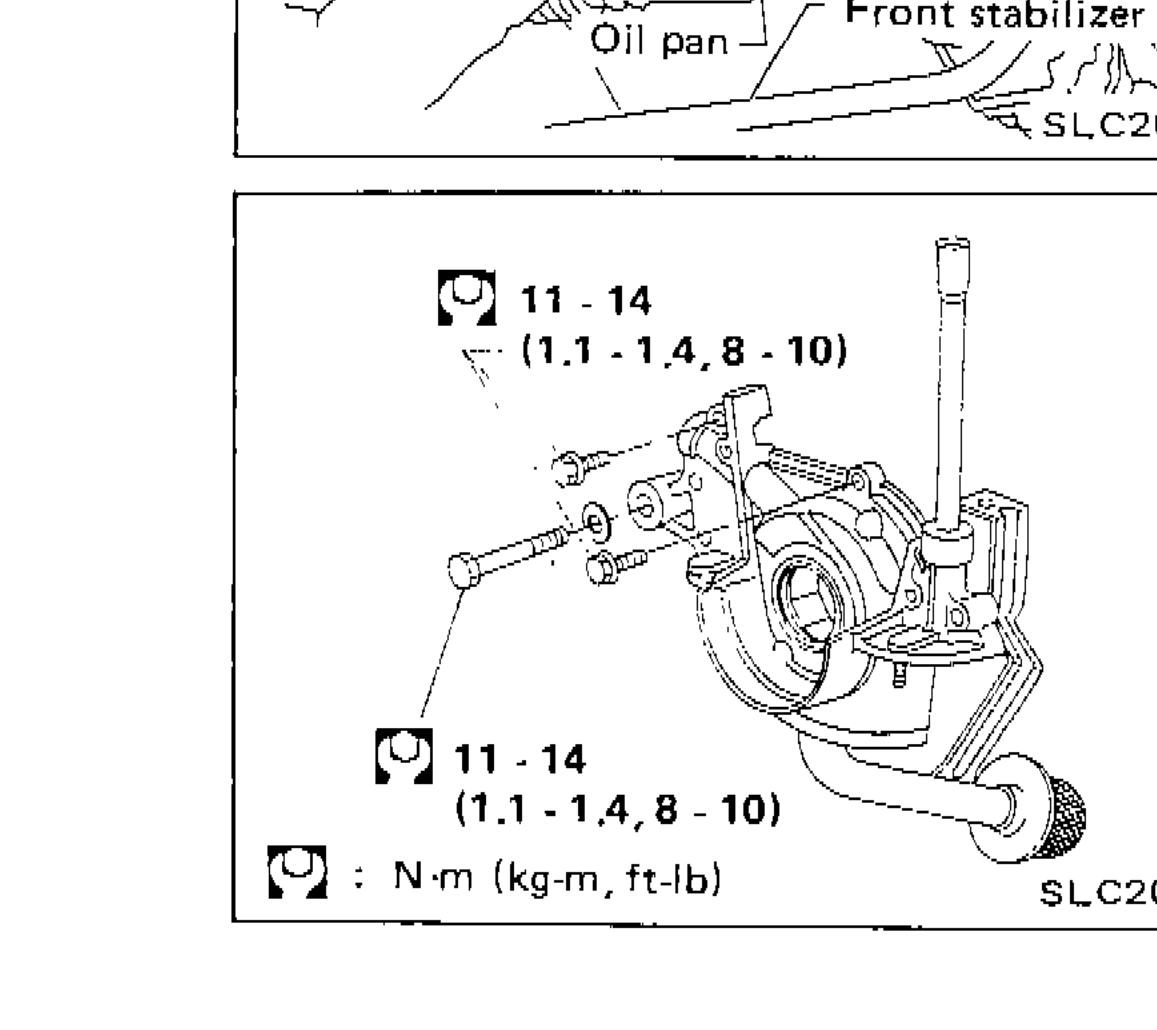

- 7Remove oil pump assembly with oil strainer.
SLC201A - 8Installation is in reverse order of removal.
| Specification | Value |
|---|---|
| Oil pump fastener torque | 11 - 14N·m |
| Oil pump fastener torque | 1.1 - 1.4kg-m |
| Oil pump fastener torque | 8 - 10ft-lb |
Oil pump fastener torque
11 - 14N·m
Oil pump fastener torque
1.1 - 1.4kg-m
Oil pump fastener torque
8 - 10ft-lb
