DOOR CONTROL — Control Cable Adjustment (Mode door, Water cock control rod, Temperature control cable)
HA-6prose procedureControl Cable Adjustment
IMPORTANT
When disconnecting the control cable, remove the E-ring and take off the cable while pushing the cable outer.
NOTE
The following illustrations are for L.H. drive models. For R.H. drive models, it is basically same.
MODE DOOR
Mode door cable adjustment
- 1Move side link with hand and hold mode door in VENT mode.

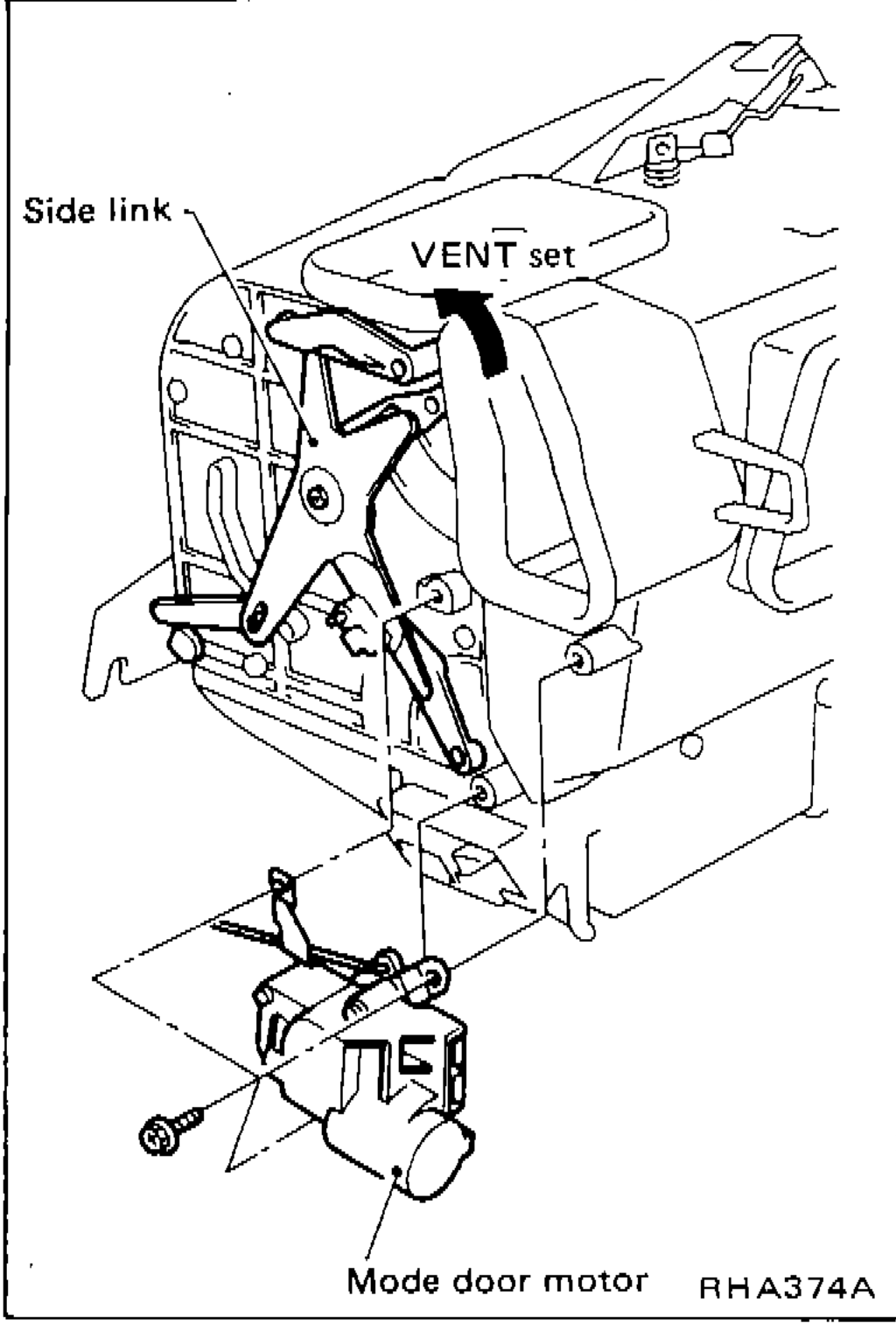

RHA374A - 2Install mode door motor on heater unit and connect it to body harness.
- 3Turn ignition switch to ACC.
- 4Turn VENT switch ON.
- 5Attach mode door motor rod to side link rod holder.
- 6Turn DEF switch ON. Check that side link operates at the fully-open position. Also turn VENT switch ON to check that side link operates at the fully-open position.
WATER COCK CONTROL ROD
IMPORTANT
When adjusting water cock control rod, first disconnect temperature control cable from air mix door lever. Reconnect and readjust temperature control cable.
Water cock control rod adjustment
- 1Push air mix door lever in direction of arrow.

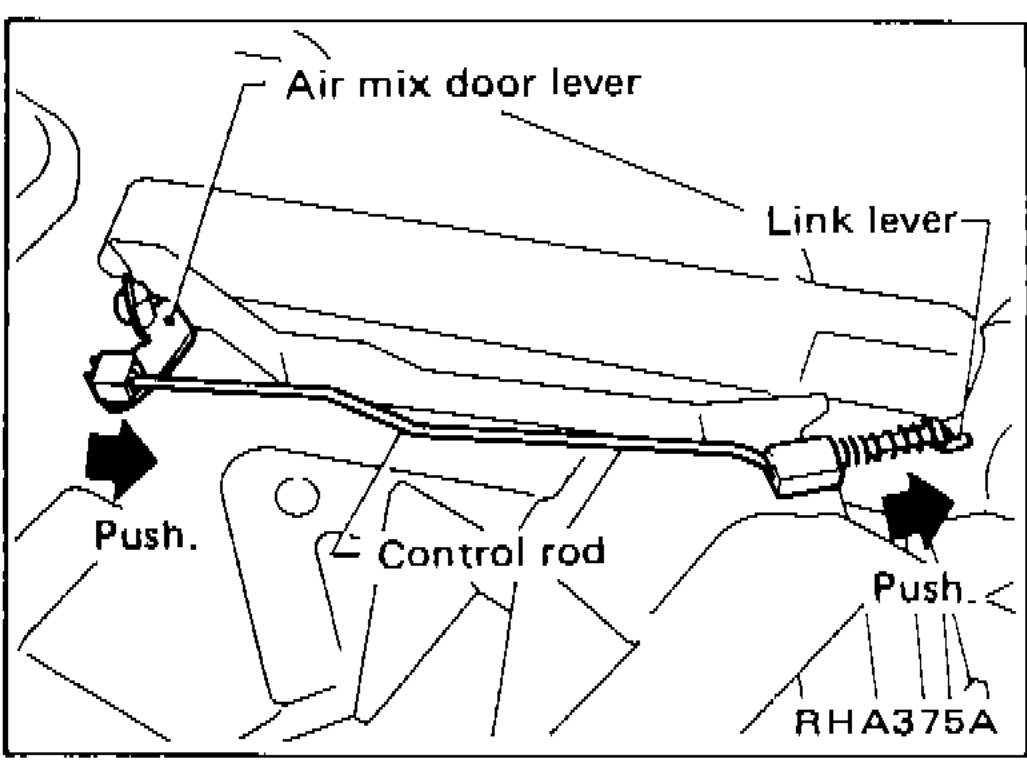

RHA375A - 2Pull control rod of water cock in direction of arrow so as to make clearance of about 2 mm (0.08 in) between ends of rod and link connect the rod to door lever.
IMPORTANT
After connecting control rod, check it operates properly.
TEMPERATURE CONTROL CABLE
IMPORTANT
Clamp the cable while pushing cable outer and air mix door lever in direction of arrow.
After positioning control cable, check it operates properly.
| Specification | Value |
|---|---|
| Water-cock control rod clearanceBetween rod ends and door lever (step 2). | ≈ 2mm (0.08 in) |
Water-cock control rod clearanceBetween rod ends and door lever (step 2).
≈ 2mm (0.08 in)
