PUSH CONTROL UNIT — Overhaul (Cont'd) — disassembly steps 1-5

HA-13prose procedure
Continued from HA-12

Overhaul — Push control unit assembly (Cont'd)

Push control unit disassembly steps 1-5

  1. 1

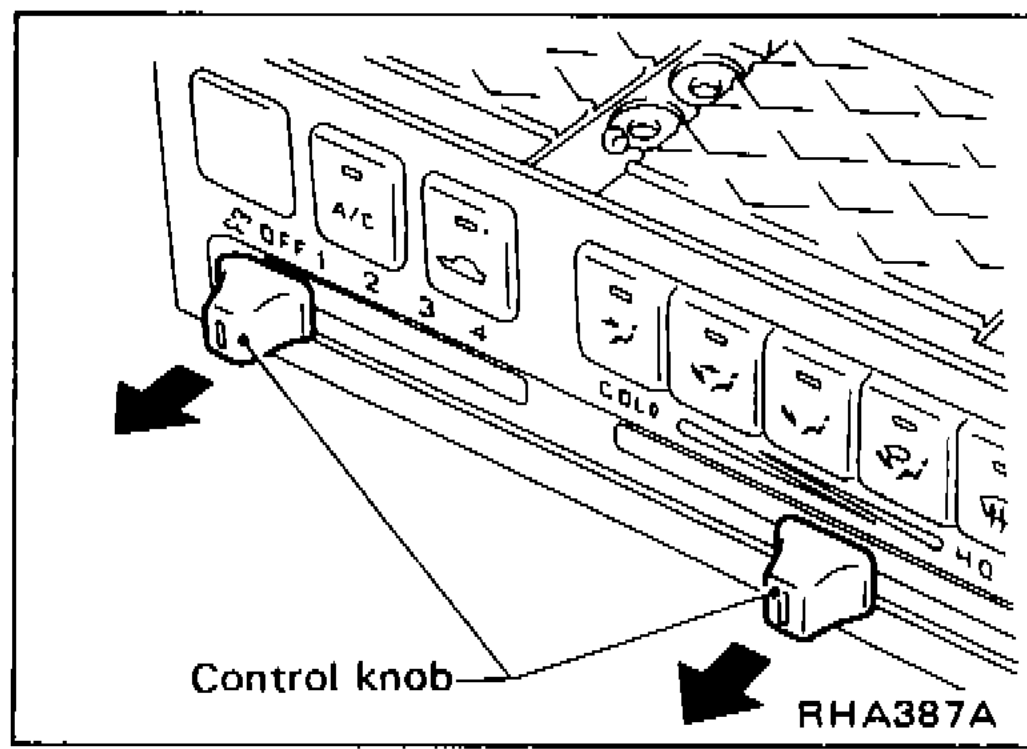

    Remove two knobs.
    Wrap knobs with a cloth and pull in direction indicated by arrow as shown in figure at left. Be careful not to scratch knobs during removal.
    Two control knobs being pulled off the front of the push control assembly with cloth-wrapped pliers; arrow shows pull direction.
    RHA387A
  2. 2
    Disconnect illumination harness connectors.
    Small flat-bladed screwdriver disconnecting the illumination harness connectors at the top of the push control unit.
    RHA388A
  3. 3

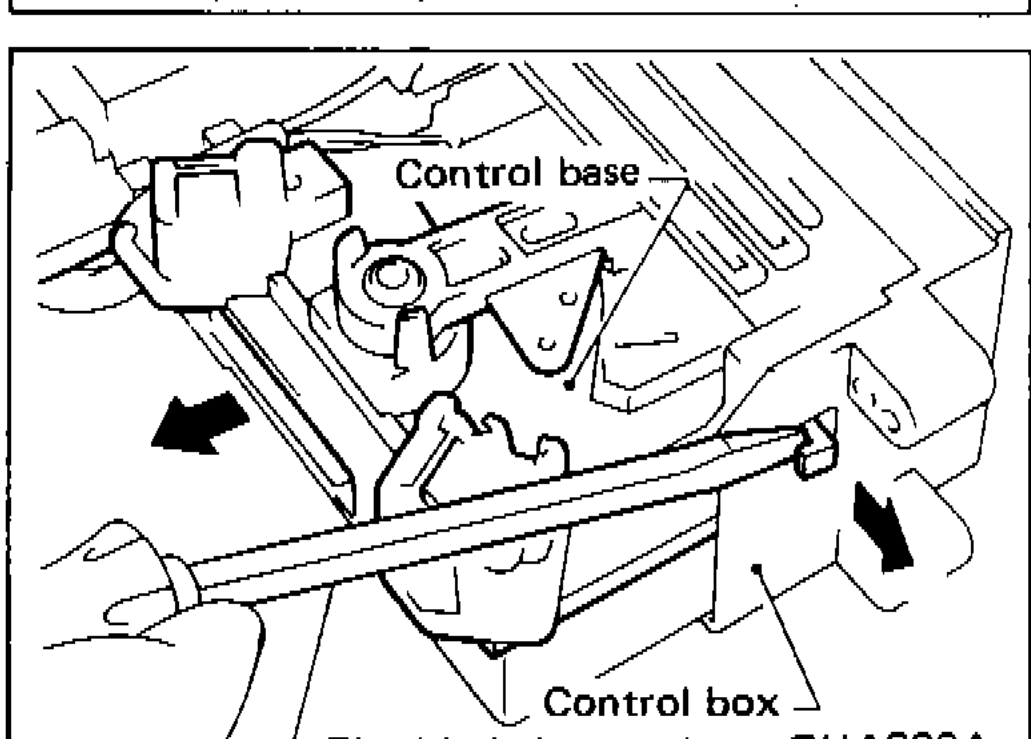

    Remove control base. Undo hook at each end of control box and remove control base from control box by moving it in direction indicated by arrow.
    Flat-bladed screwdriver releasing the hooks at each end of the control box; control base lifted off and away from control box (arrow direction).
    RHA389A
  4. 4

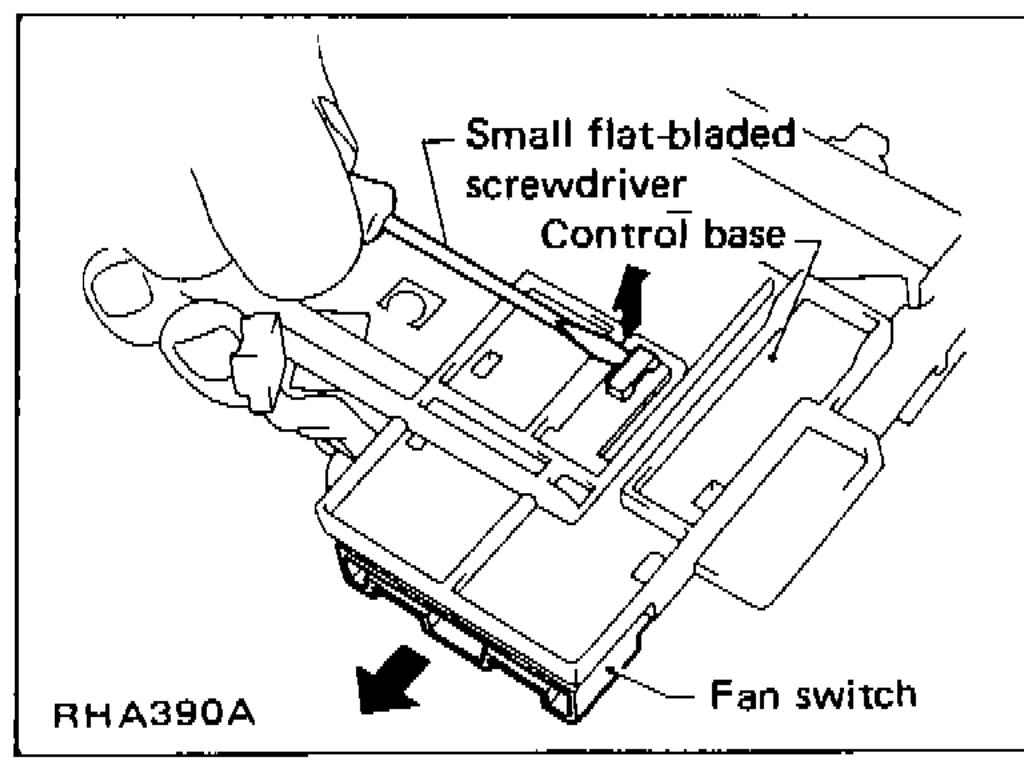

    Remove fan switch.
    Small flat-bladed screwdriver releasing the fan switch from the control base.
    RHA390A
  5. 5
    Remove control knobs.
    Wrap finisher with a cloth and remove knobs using pliers or similar tool. Be careful not to scratch finisher's surface.
