Assembly — Differential Carrier (Cont'd)

PD-28prose procedure

Differential Carrier (Cont'd)

15

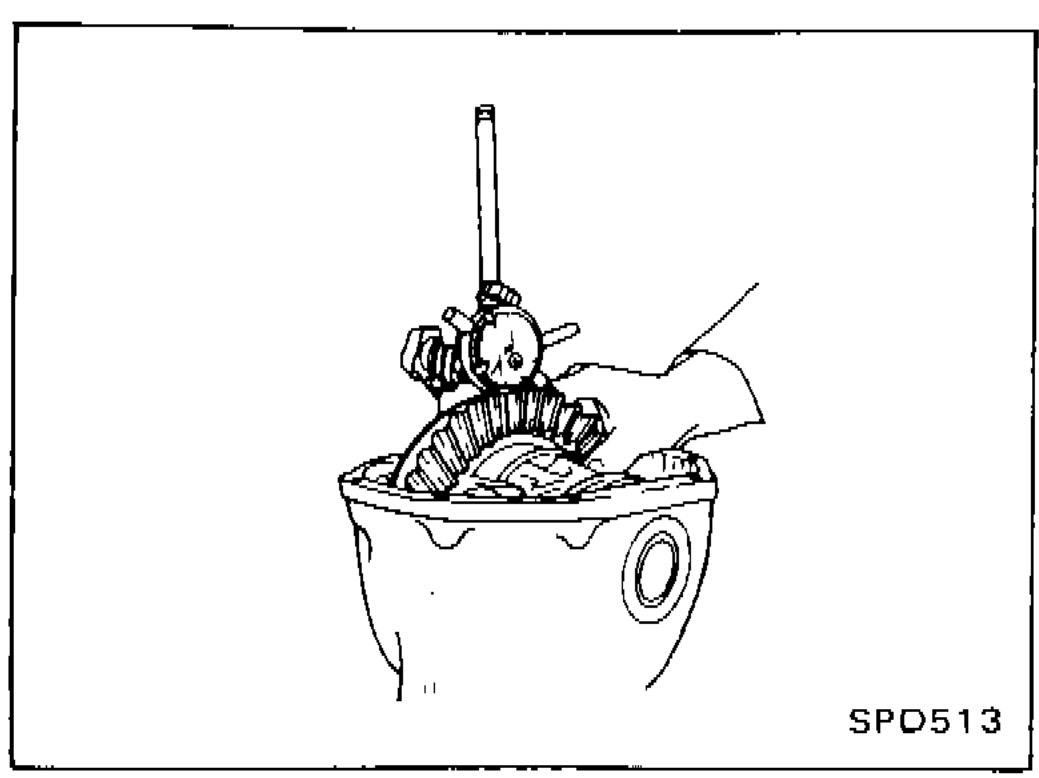

Measure ring gear-to-drive pinion backlash with a dial indicator.
If backlash is too small, decrease thickness of left shim and increase thickness of right shim by the same amount.
If backlash is too great, reverse the above procedure.
Never change the total amount of shims as it will change the bearing preload.
SPD513
16

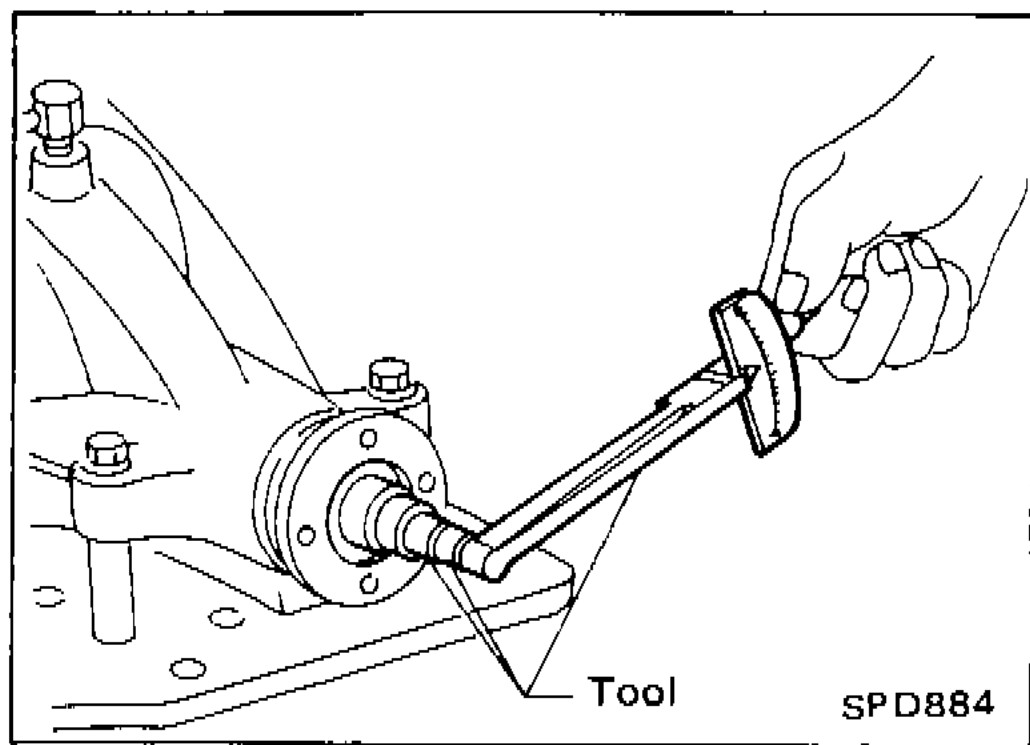

Check total preload with Tool. When checking preload, turn drive pinion in both directions several times to seat bearing rollers correctly.
Never add or remove a different number of shims for each side as it will change ring gear-to-drive pinion backlash.
If preload is too great, remove the same amount of shim to each side.
If preload is too small, add the same amount of shim to each side.
SPD884
17
Recheck ring gear-to-drive pinion backlash because increase or decrease in thickness of shims will cause change of ring gear-to-pinion backlash.
18

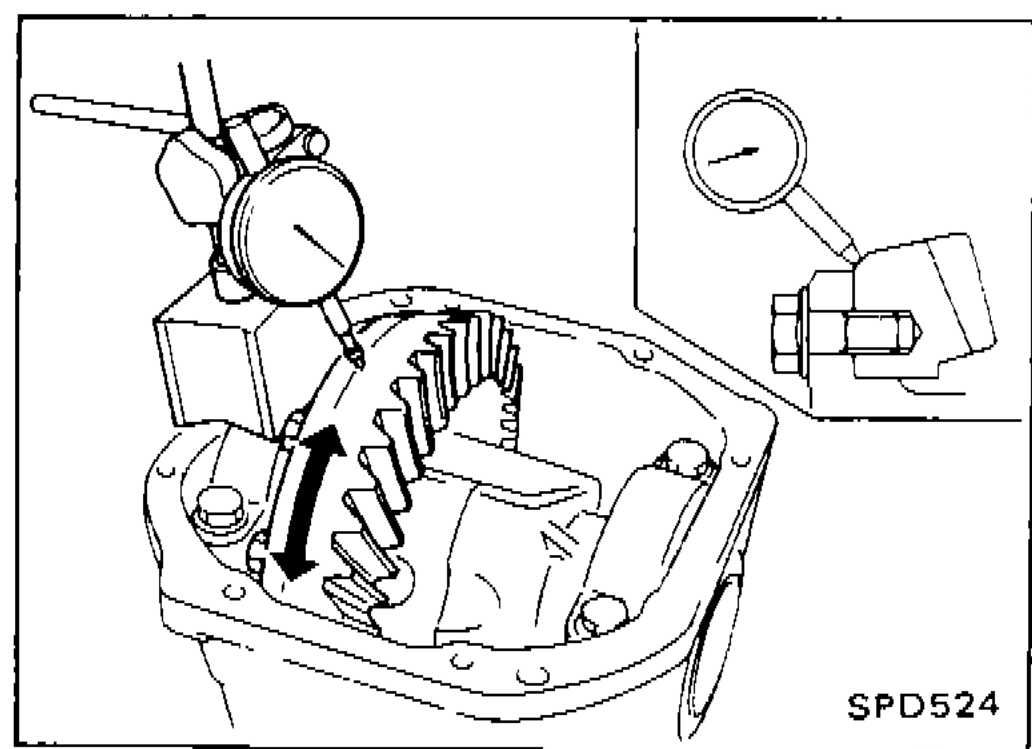

Check runout of ring gear with a dial indicator.
If backlash varies excessively in different places, foreign matter may be caught between the ring gear and the differential case.
If the backlash varies greatly when the ring gear runout is within a specified range, replace the hypoid gear set or differential case.
SPD524
19
Check tooth contact. Refer to ADJUSTMENT.
20
Install rear cover and gasket.
