DISASSEMBLY — Differential Carrier (Cont'd) / Differential Case

PD-14prose procedure

Continued from PD-13

Differential Carrier (Cont'd)

Differential Carrier Disassembly (Cont'd)

6

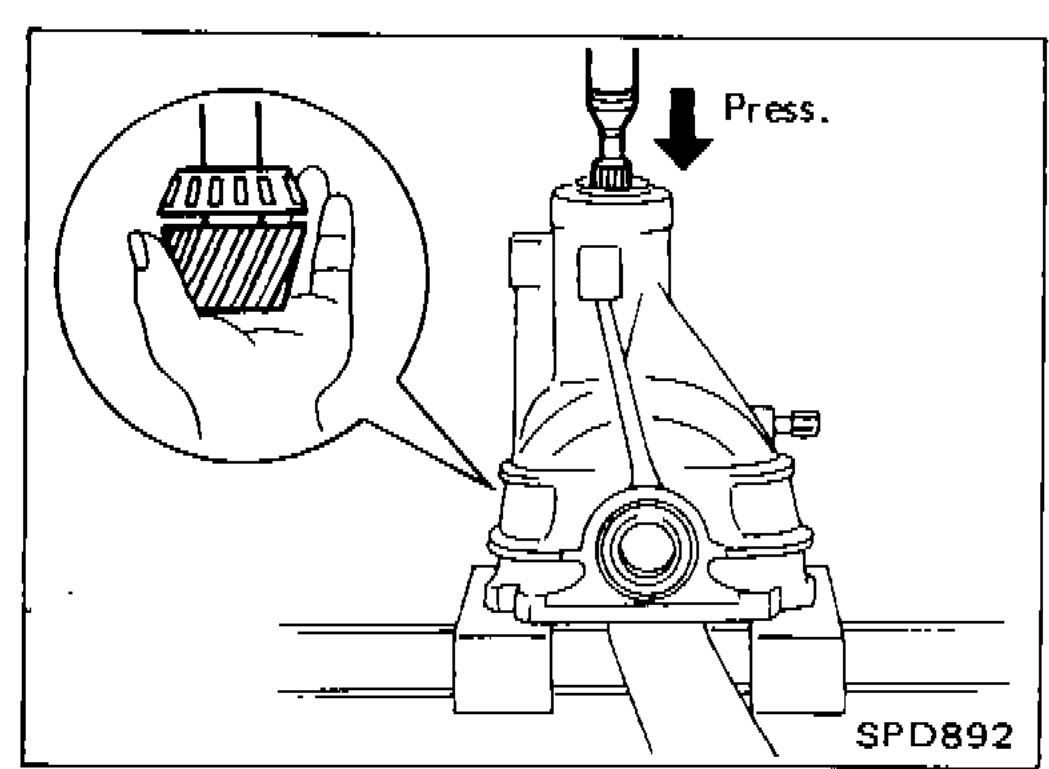

Take out drive pinion (together with rear bearing inner race, bearing spacer and adjusting washer).
SPD892
7
Remove oil seal.
8
Remove front bearing inner race.
9
Remove side oil seal.
10

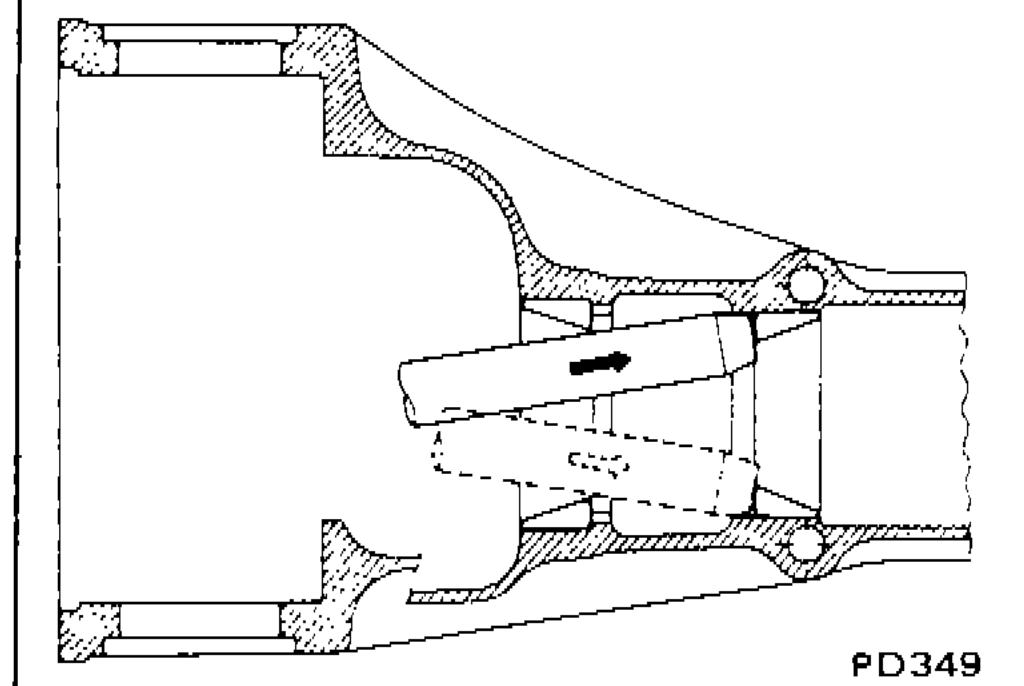

Remove pinion bearing outer races with a brass drift.
PD349
11

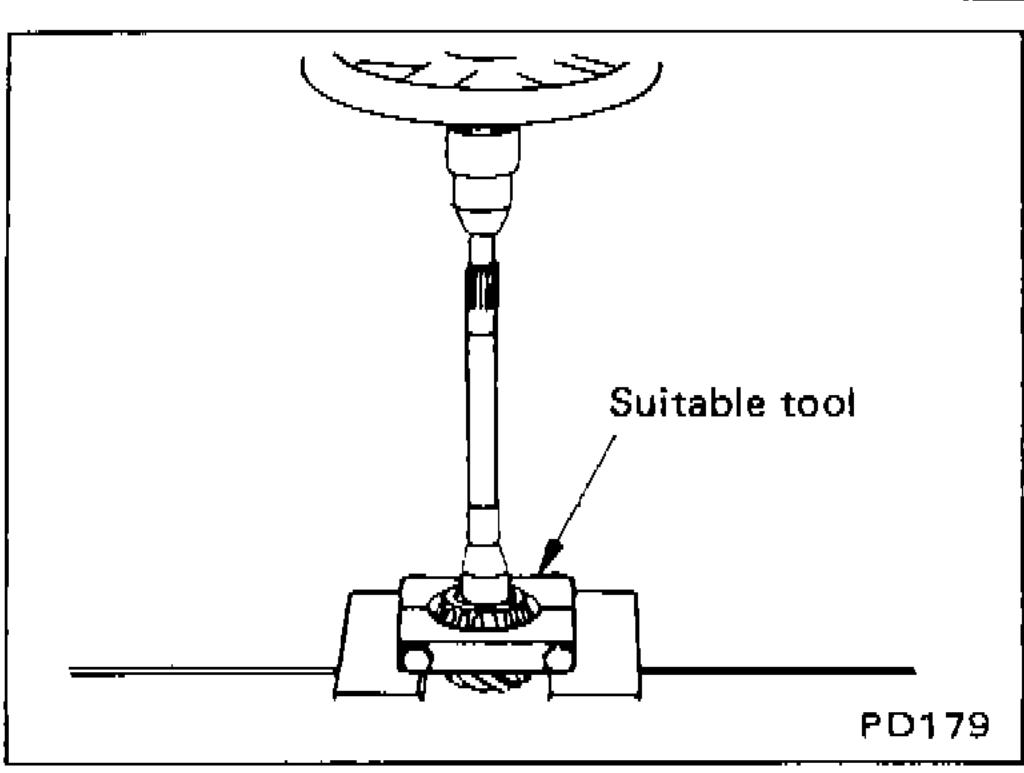

Remove pinion rear bearing inner race and drive pinion height adjusting washer with suitable tool.
PD179

Differential Case

Differential Case Disassembly

1

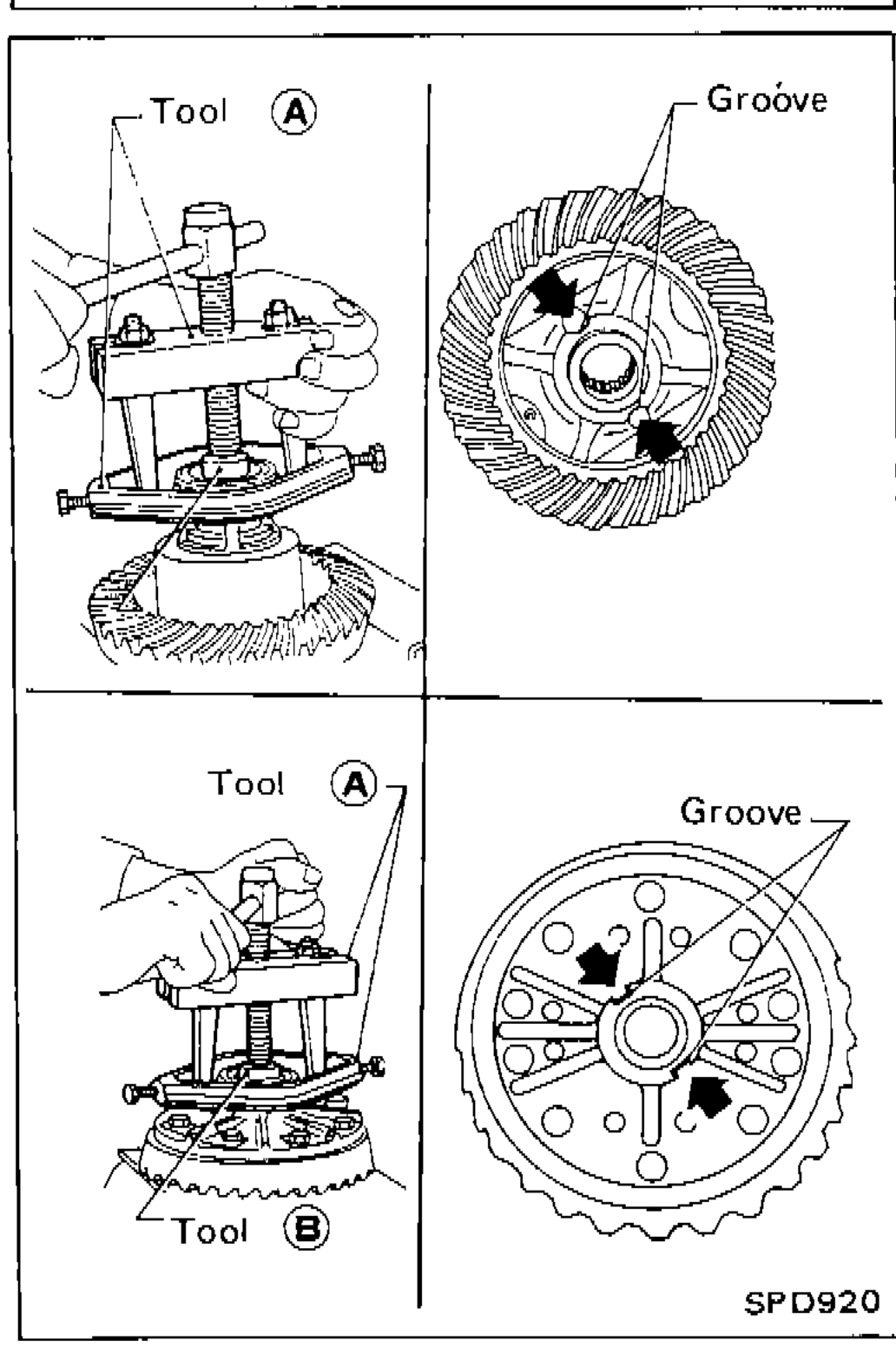

Remove side bearing inner cones.
To prevent damage to bearing, engage puller jaws in groove.
SPD920

IMPORTANT

To prevent damage to bearing, engage puller jaws in groove. Tool number: (A) ST33051001 (B) ST33061000
