Assembly — Differential Carrier (Cont'd)

PD-27prose procedure
Continued from PD-26

Differential Carrier (Cont'd)

Differential Carrier Assembly (Continued)

  1. 9
    Select side bearing adjusting washer. Refer to ADJUSTMENT.
  2. 10
    Install differential case assembly with side bearing outer races into gear carrier.

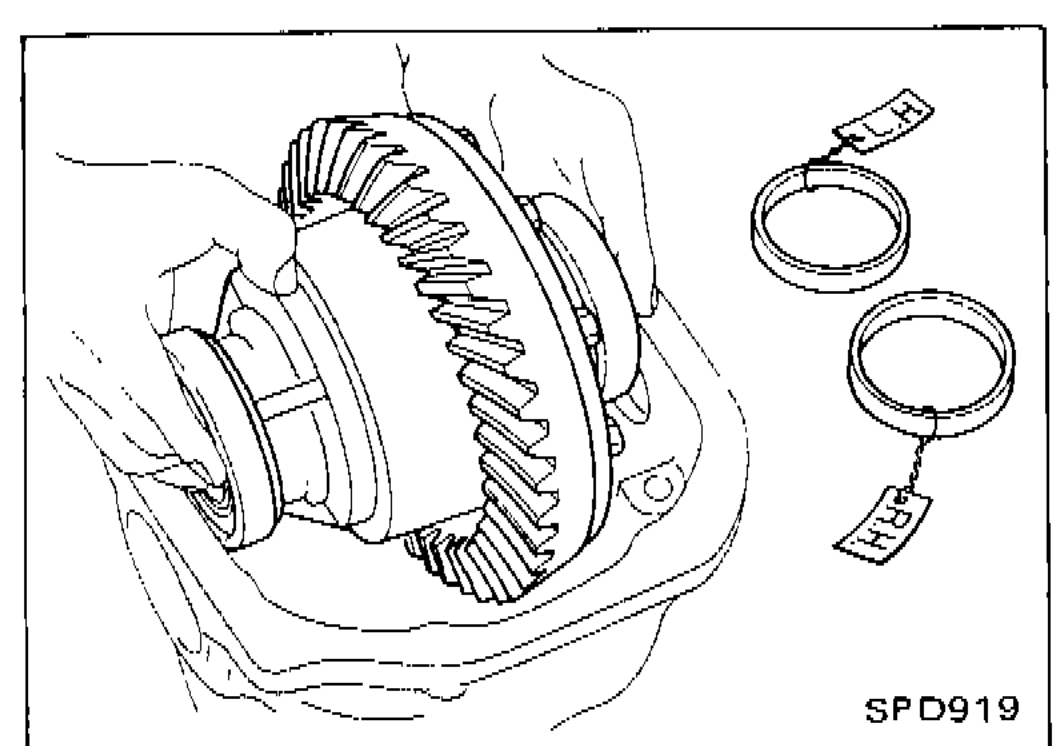

    Differential case assembly with side bearing outer races being installed into gear carrier
    SPD919
  3. 11
    Insert left and right side bearing adjusting washers in place between side bearings and carrier.

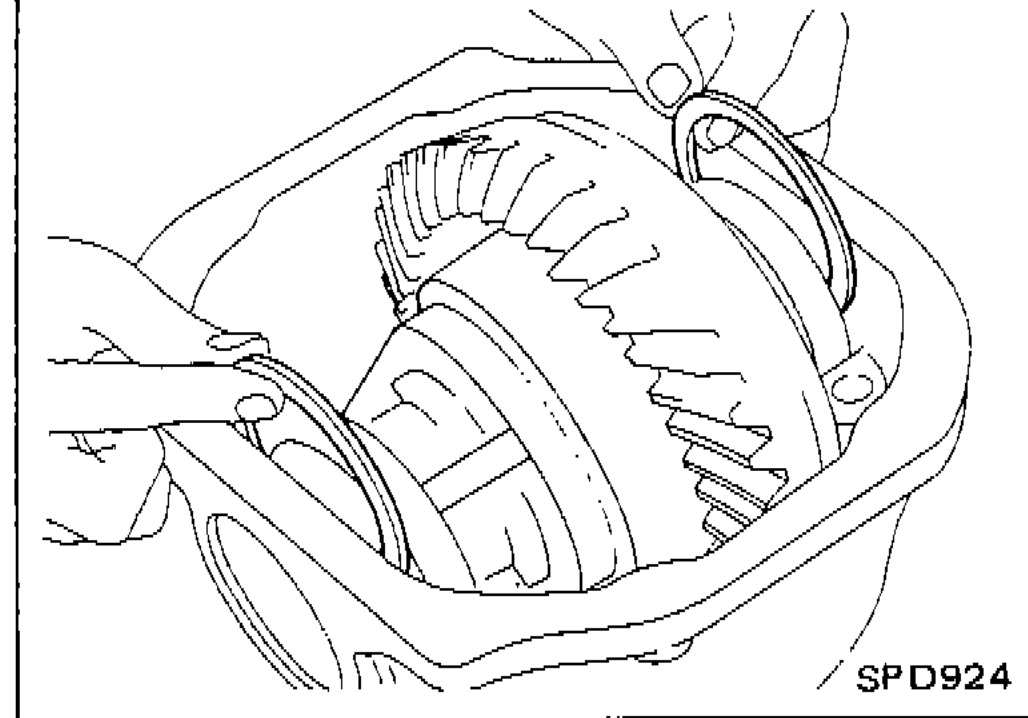

    Inserting left and right side bearing adjusting washers between side bearings and carrier
    SPD924
  4. 12
    Drive in side bearing spacer with Tool. Tool number: KV38100600

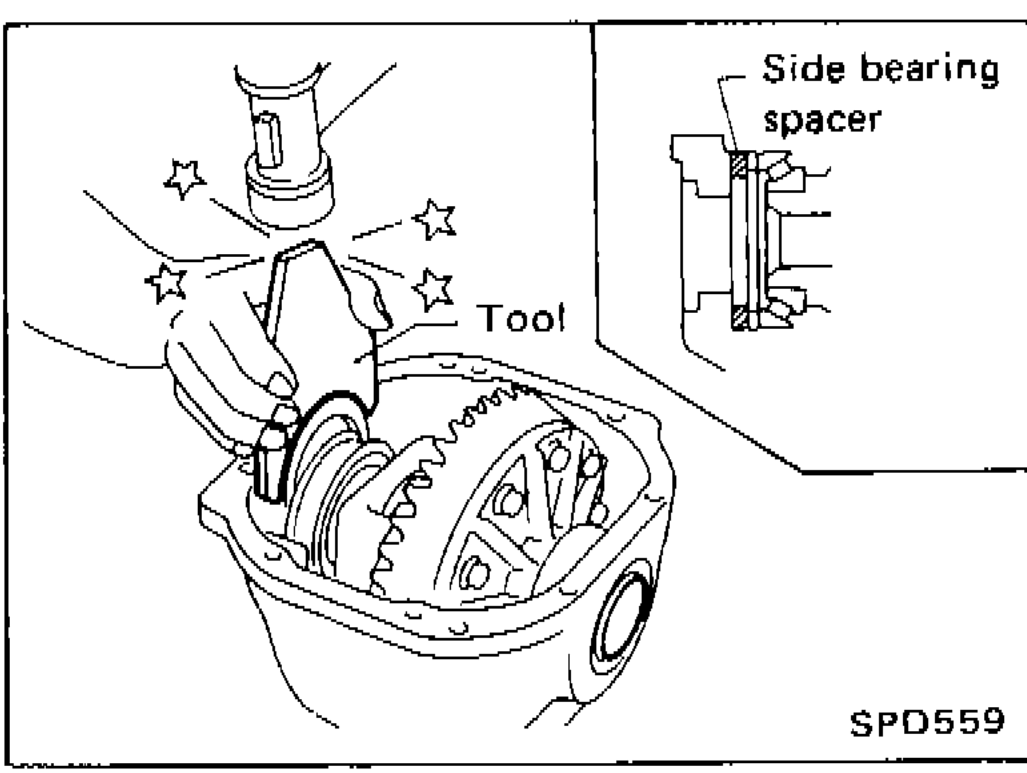

    Driving in side bearing spacer with Tool KV38100600; callouts for Side bearing spacer and Tool
    SPD559
  5. 13
    Align mark on bearing cap with that on gear carrier and install bearing cap on gear carrier.

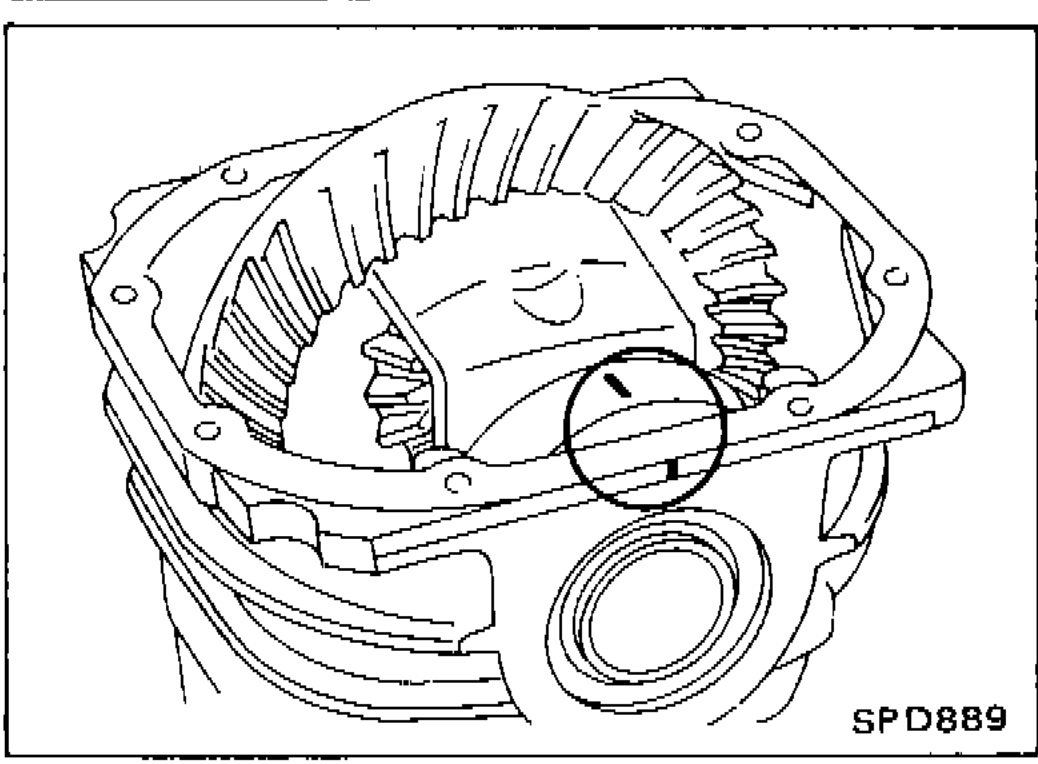

    Aligning mark on bearing cap with mark on gear carrier and installing bearing cap
    SPD889
  6. 14
    Apply multi-purpose grease to cavity at sealing lips of oil seal. Install side oil seal. Tool number: KV38100200

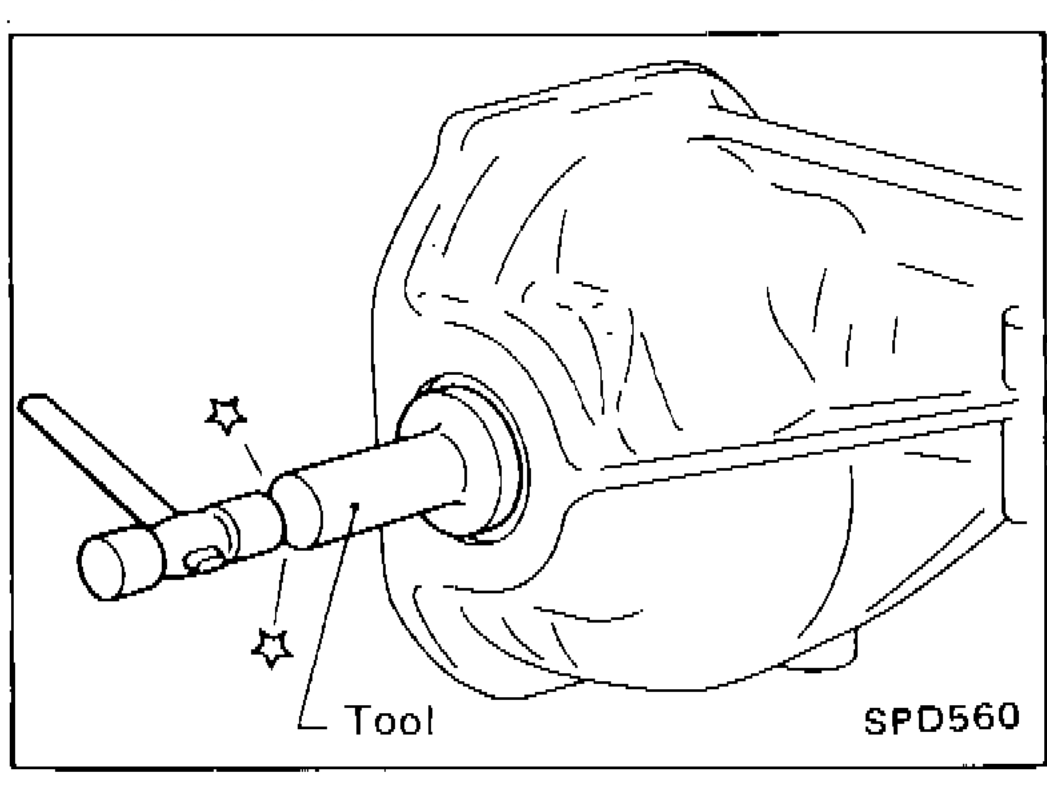

    Applying multi-purpose grease and installing side oil seal using Tool KV38100200
    SPD560
