Disassembly — Differential Case (Cont'd)
PD-15prose procedureDifferential case has L.H. (left-hand) and R.H. (right-hand) sides that must not be confused. 4-pinion type differential case referenced for step 4.
Differential Case (Cont'd)
CAUTION
Be careful not to confuse left- and right-hand parts.
Differential Case Disassembly (Continued)
- 2Loosen ring gear bolts in a criss-cross fashion.

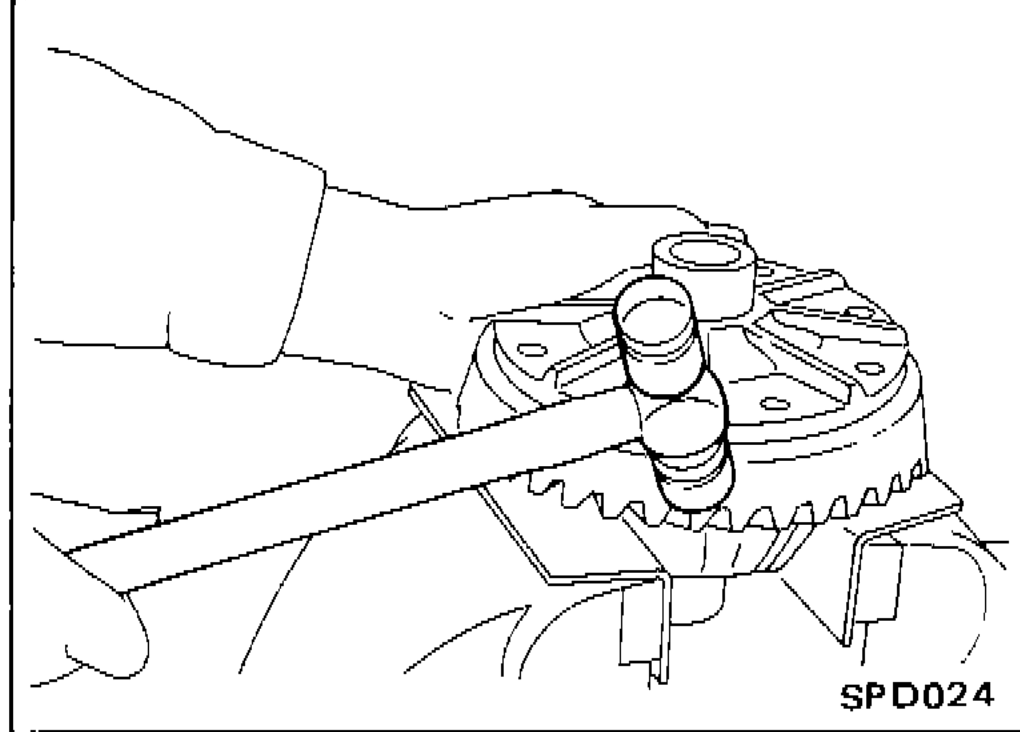

SPD024 - 3Tap ring gear off the differential case with a soft hammer. Tap evenly all around to keep ring gear from binding.Tap evenly all around to keep ring gear from binding.

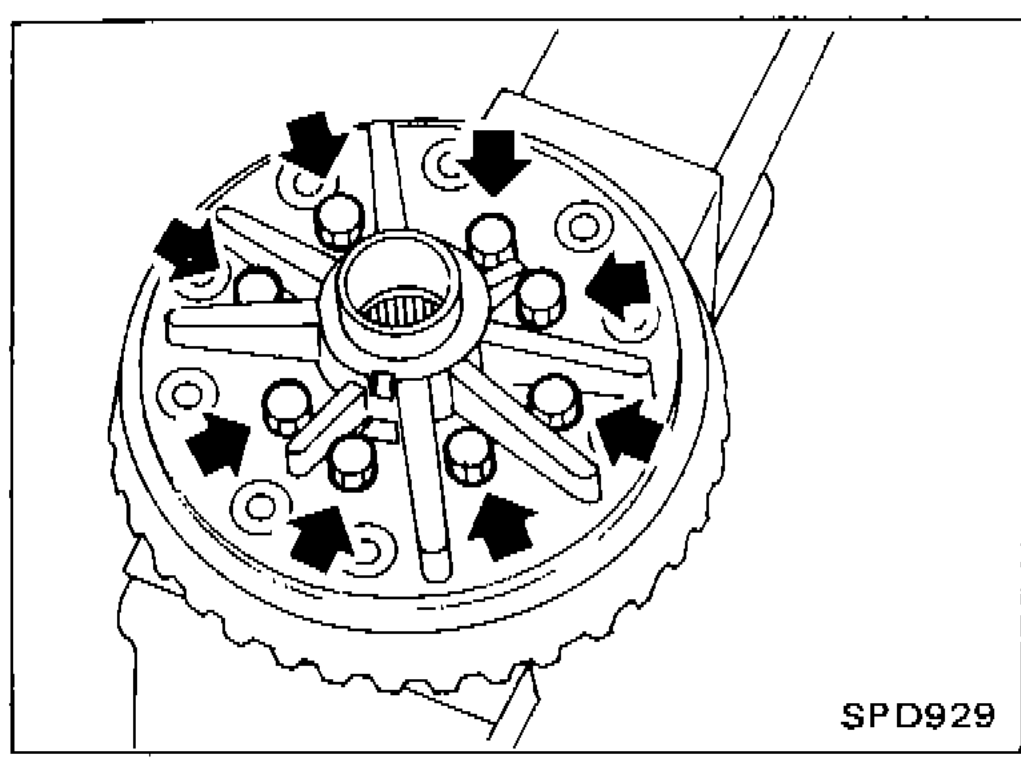

- 4Separate differential case L.H. and R.H. (4-pinion type differential case). Put matchmarks on both differential case L.H. and R.H. sides prior to separating them.Put matchmarks on both differential case L.H. and R.H. sides prior to separating them.
SPD929
