Differential Carrier — Assembly

PD-25prose procedure
Continued from PD-24

ASSEMBLY

Differential Carrier

Differential Carrier Assembly

  1. 1

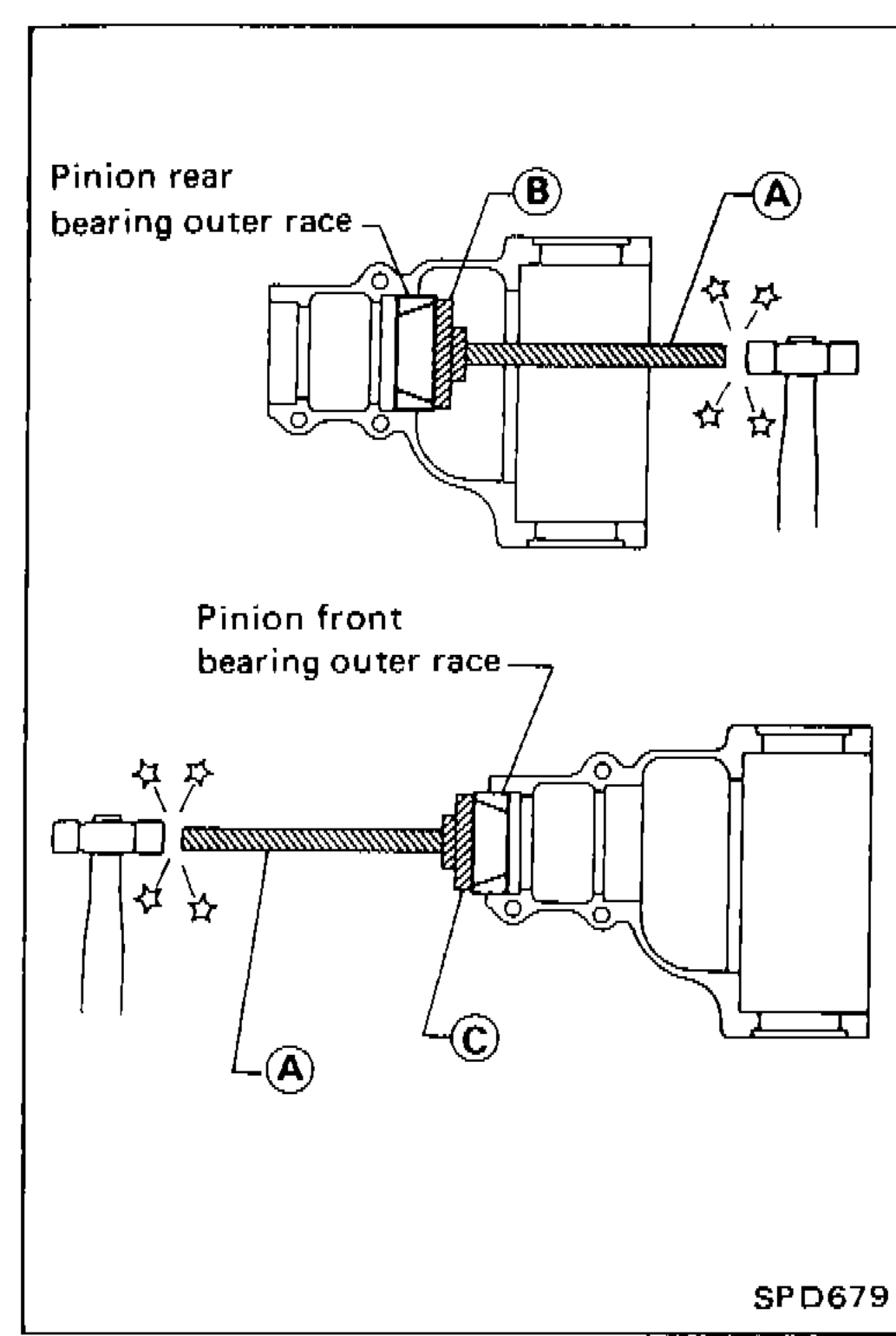

    Press-fit front and rear bearing outer races with Tools. Tool number: (A) ST30611000, (B) ST30613000, (C) ST30701000
    Cross-section illustration showing press-fitting of pinion rear bearing outer race and pinion front bearing outer race into differential carrier using tools A, B, and C.
    SPD679
  2. 2
    Select pinion bearing adjusting washer and drive pinion bearing spacer, referring to ADJUSTMENT.
  3. 3

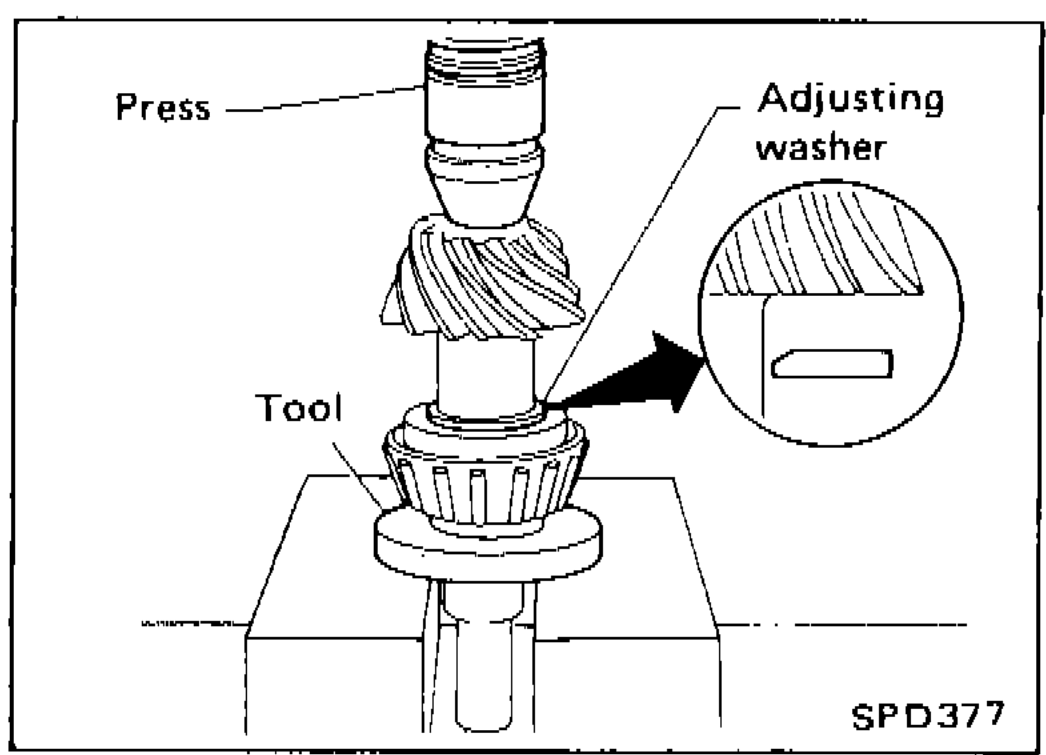

    Install drive pinion height adjusting washer in drive pinion, and press-fit pinion rear bearing inner cone in it, using press and Tool. Tool number: ST30901000
    Illustration showing installation of drive pinion height adjusting washer in drive pinion and press-fitting of pinion rear bearing inner cone using press and tool.
    SPD377
  4. 4

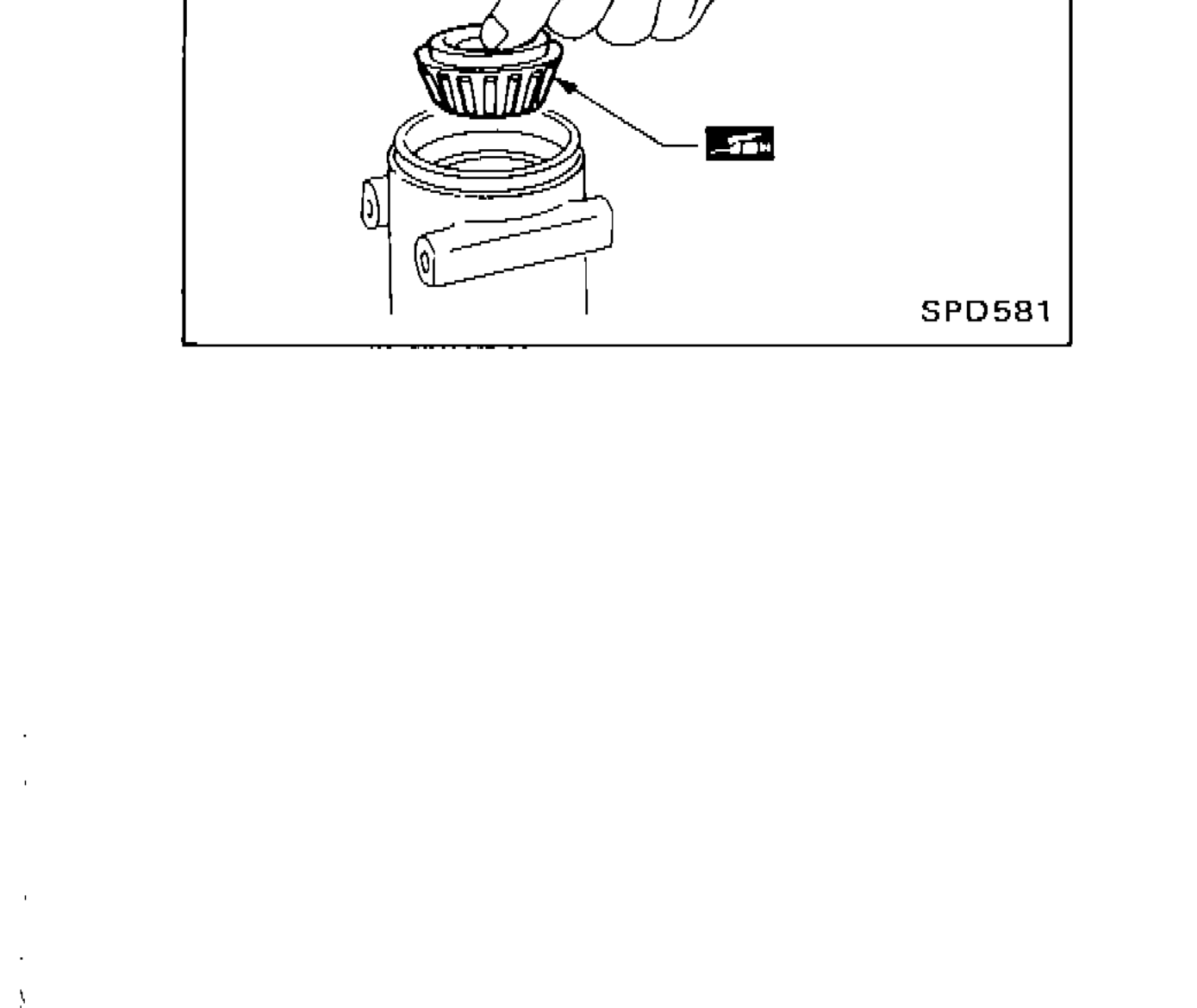

    Place pinion front bearing inner cone in final drive housing.
    Illustration showing placement of pinion front bearing inner cone into final drive housing by hand.
    SPD581
