Drive Pinion Height (Cont'd)
PD-18prose procedureADJUSTMENT
Drive Pinion Height (Cont'd)

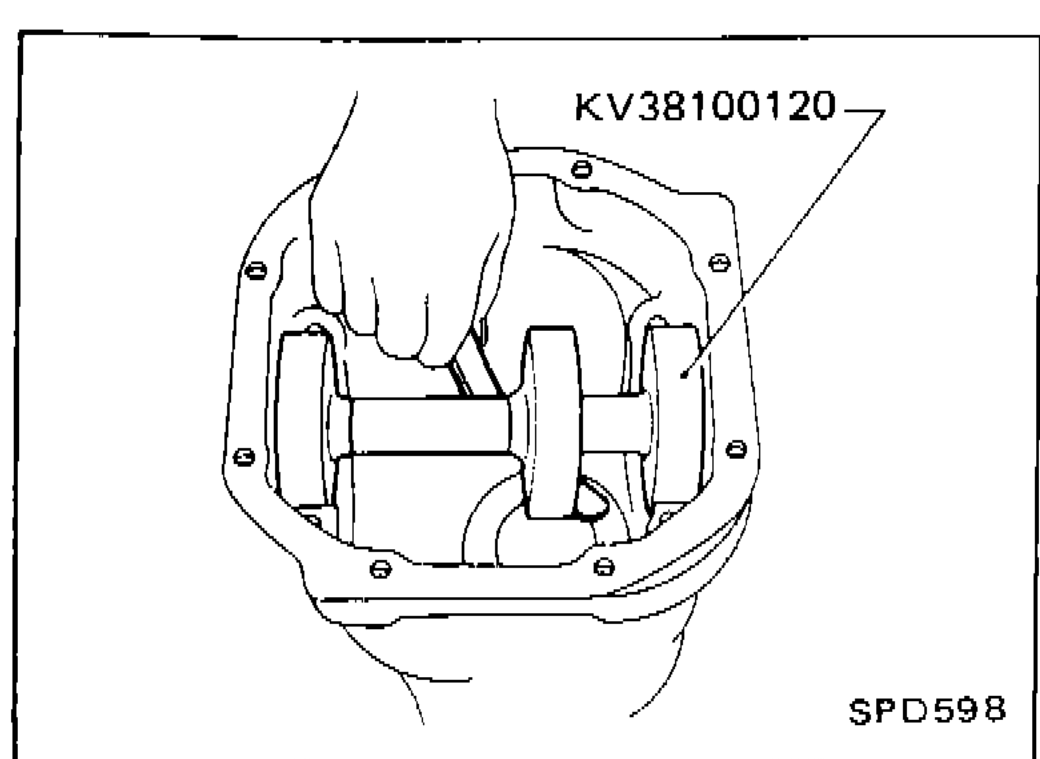

- 5Attach Tool (Height gauge) to gear carrier, and measure the clearance between the height gauge and the dummy shaft face.
SPD598 - 6Substitute these values into the equation to calculate the thickness of the washer.If value signifying H is not given, regard it as zero and calculate.T (Thickness of washer) = N − (H x 0.01) + 3.00Example: N = 0.23, H = 1T = N − (H x 0.01) + 3.00 = 0.23 − (1 x 0.01) + 3.00Calculation steps: (1) H = 1; +1. (2) +1 x 0.01 = +0.01. (3) N = 0.23 − (+0.01) = 0.22. (4) 0.22 + 3.00 = 3.22. Therefore T = 3.22
- 7Select the proper washer. (Refer to S.D.S.)If you cannot find the desired thickness of washer, use washer with thickness closest to the calculated value.Example: Calculated value ... T = 3.22 mm; Used washer ... T = 3.21 mm
IMPORTANT
If value signifying H is not given, regard it as zero and calculate.
T (Thickness of washer) = N − (H x 0.01) + 3.00
Example:
N = 0.23
H = 1
T = N − (H x 0.01) + 3.00
= 0.23 − (1 x 0.01) + 3.00
(1) H ..................................... 1
+1
(2) +1
x 0.01
------
+0.01
(3) N ..................................... 0.23
− (+0.01)
------
0.22
(4) 0.22
+3.00
------
3.22
∴ T = 3.22
IMPORTANT
If you cannot find the desired thickness of washer, use washer with thickness closest to the calculated value.
Example:
Calculated value ... T = 3.22 mm
Used washer ... T = 3.21 mm
