Assembly — Differential Case
PD-24prose procedureDifferential case installation includes L.H. and R.H. sides.
Differential Case
Differential Case Assembly

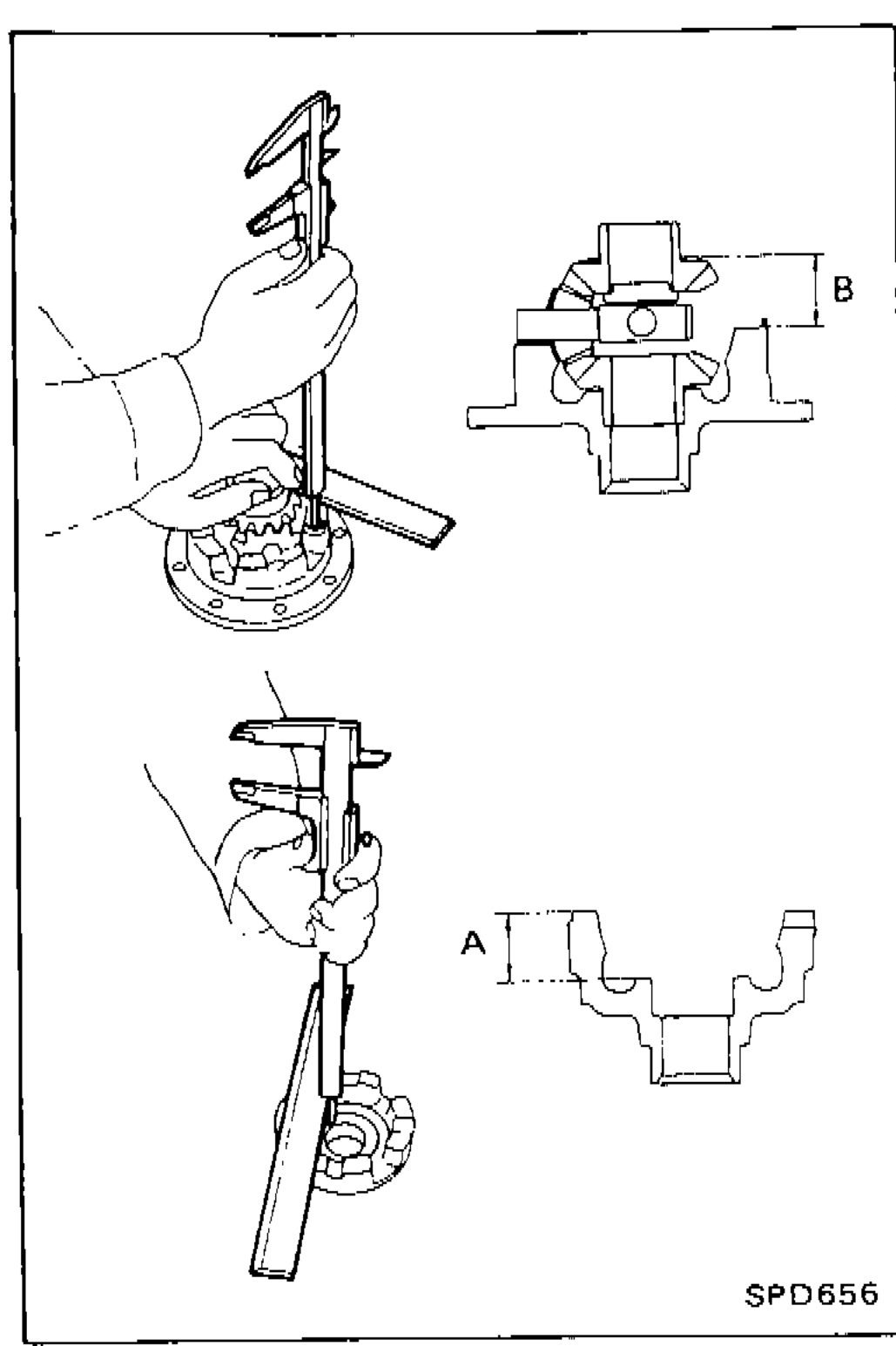

- 1Measure clearance between side gear thrust washer and differential case.Clearance between side gear thrust washer and differential case (A – B): 0.15 - 0.20 mm (0.0059 - 0.0079 in)The clearance can be adjusted with side gear thrust washer. Refer to S.D.S.
SPD656 - 2Apply oil to gear tooth surfaces and thrust surfaces and check that they turn properly.

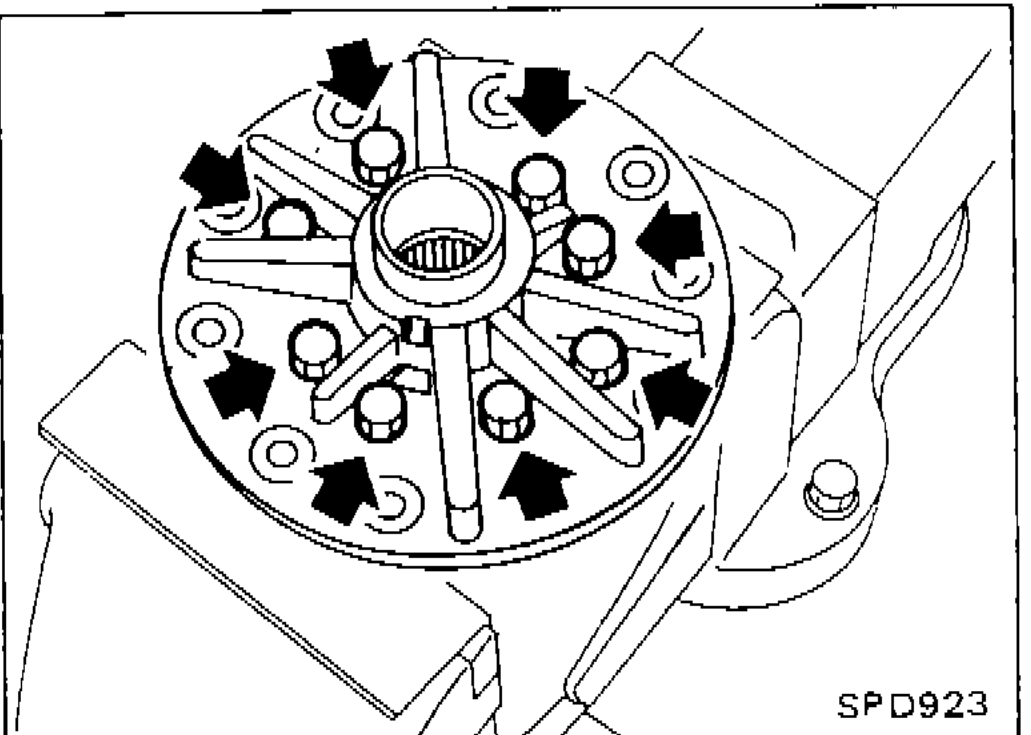

- 3Install differential case L.H. and R.H.

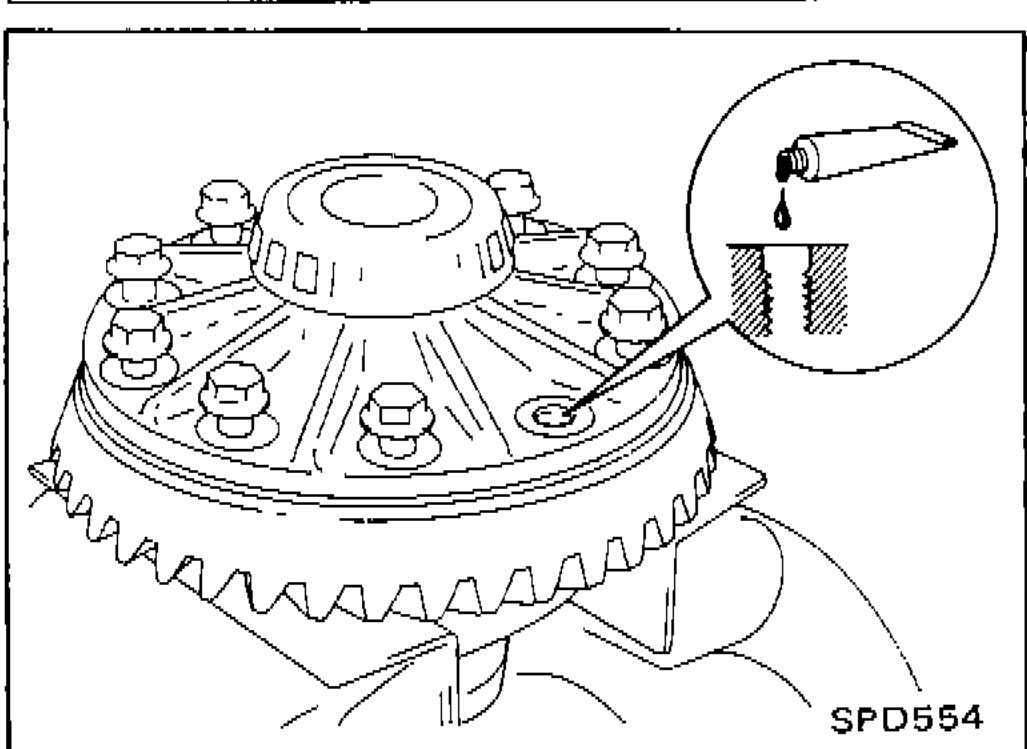

SPD923 - 4Place differential case on ring gear.
SPD554 - 5Apply locking sealant to ring gear bolts, and install them. Tighten bolts in a criss-cross fashion, lightly tapping bolt head with a hammer.

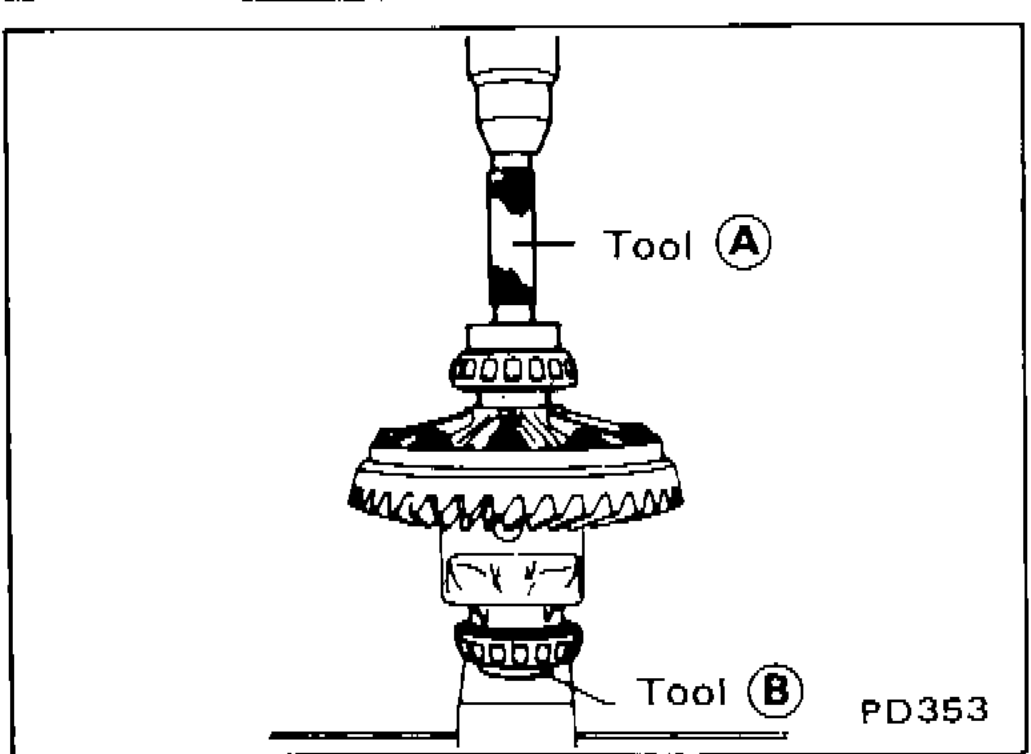

- 6Press-fit side bearing inner cones on differential case with Tool. Tool number: A KV38100300, B ST33061000
PD353
| Specification | Value |
|---|---|
| Clearance between side gear thrust washer and differential case (A – B) | 0.15 - 0.20mm0.0059 - 0.0079in |
Clearance between side gear thrust washer and differential case (A – B)
0.15 - 0.20mm0.0059 - 0.0079in
