LIFTING POINTS AND TOW TRUCK TOWING
GI-18prose procedureTowing recommendation specifies driving (rear) wheels off the ground. When rear wheels are on the ground, release parking brake and set gearshift to neutral ("N").
2-pole Lift
WARNING
When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
When setting the lift arm, do not allow the arm to contact the brake tubes and fuel lines.

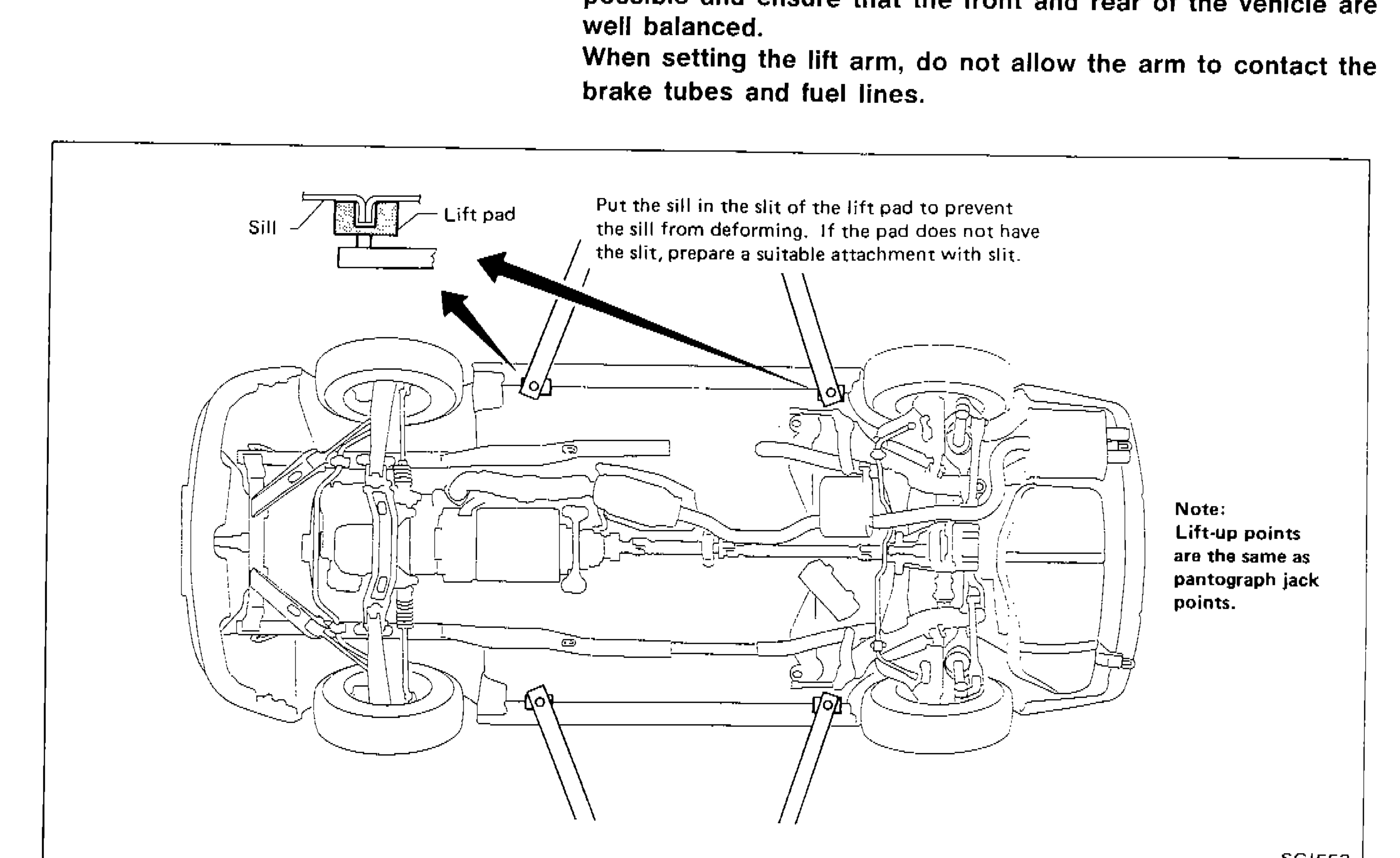

Component LocationFig. fig1
Underside view of vehicle showing 2-pole lift point locations at sill positions
SGI553
1Sill(left, upper area of underside diagram)
2Lift pad(upper left, inset detail)
3Put the sill in the slit of the lift pad to prevent the sill from deforming. If the pad does not have the slit, prepare a suitable attachment with slit.(upper right of diagram, callout text)
4Note: Lift-up points are the same as pantograph jack points.(right side of diagram)
Tow Truck Towing
CAUTION
All applicable local laws regarding the towing operation must be obeyed.
CAUTION
It is necessary to use proper towing equipment to avoid possible damage to the vehicle during a towing operation.
CAUTION
When towing with the rear wheels on the ground, release the parking brake and move the gearshift lever to neutral ("N" position).
NISSAN recommends that vehicle be towed with the driving (rear) wheels off the ground as illustrated.
