Identification Information — Identification Number (Cont'd)

GI-15prose procedure

Europe and non-Europe (except Europe) identification plate formats are different. Manual transmission model: FS5W71C. Automatic transmission model: RE4R01A. Engine: CA18DET.

Continued from GI-14

Identification Number (Cont'd)

IDENTIFICATION PLATE

Parts DiagramFig. fig1

#	Part Name	Notes
1	Type approval number	—
2	Vehicle identification number (Chassis number)	—
3	Gross vehicle weight	—
4	Gross combination weight	Gross vehicle weight + Gross trailing capacity (Weight)
5	Gross axle weight (Front)	—
6	Gross axle weight (Rear)	—
7	Type	—
8	Body color code	—
9	Trim color code	—
10	Model	—
11	Engine model	—
12	Engine displacement	—
13	Transmission model	—
14	Axle model	—

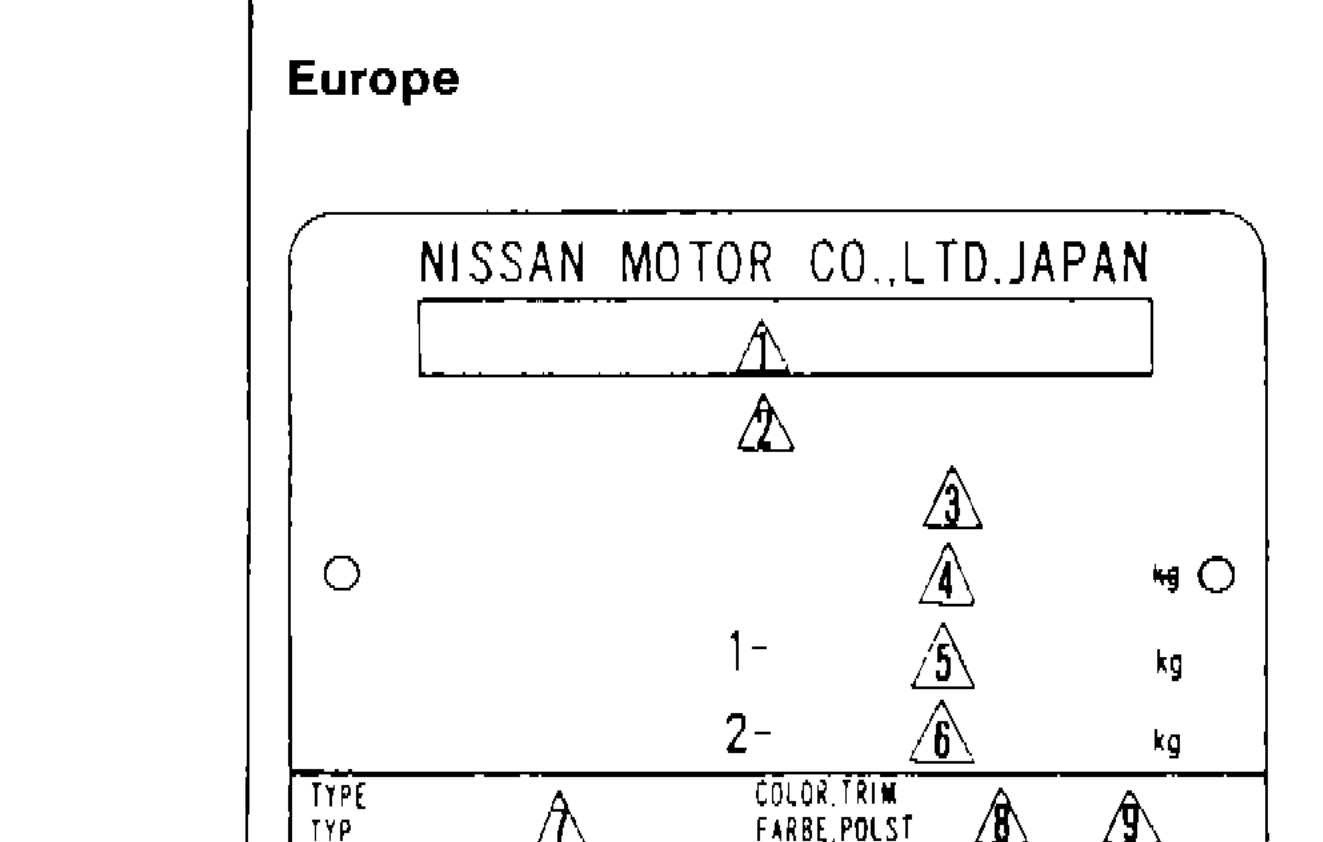

Europe identification plate: NISSAN MOTOR CO.,LTD.JAPAN. Plate items numbered 1 through 6 visible, with TYPE/TYP, COLOR TRIM/FARBE POLST fields.

Except Europe identification plate: NISSAN MOTOR CO., LTD. JAPAN. Fields include: 型式 TYPE TIPO, CHASSIS NO. / NO. DE CHASIS, MODEL / MODELO, カラー COLOR TRIM / トリム COLOR GUARNICION, エンジン ENGINE / ジン MOTOR (cc), ミッション TRANS. AXLE / アクスル TRANS. EJE, 工場 PLANT PLANTA. Footer: 日産自動車株式会社 MADE IN JAPAN.

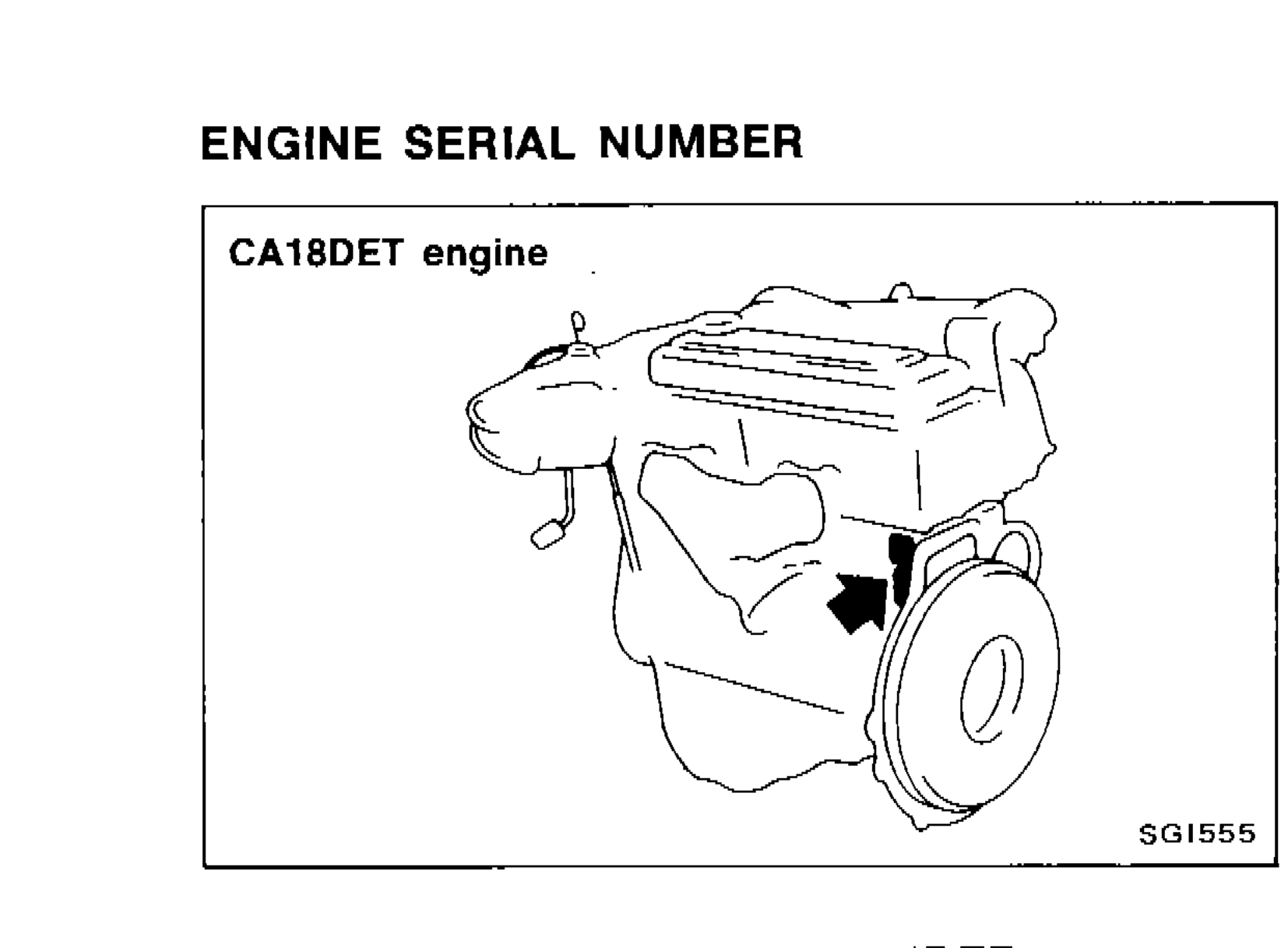

ENGINE SERIAL NUMBER

Component LocationFig. fig3

CA18DET engine serial number location indicated by arrow on engine block

CA18DET engine with arrow indicating engine serial number location

SGI555

1CA18DET engine(upper-left of figure)

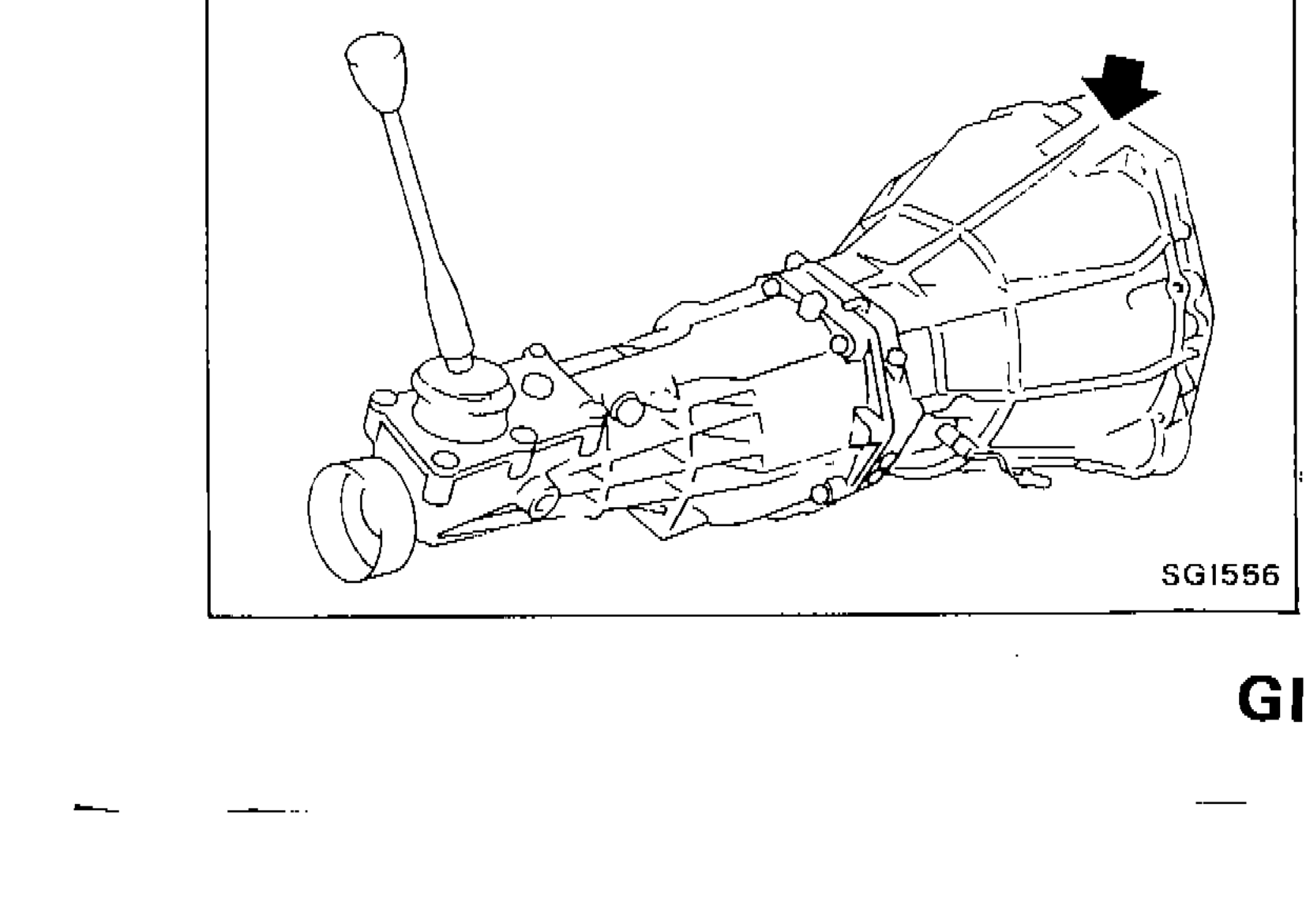

MANUAL TRANSMISSION NUMBER

Component LocationFig. fig4

FS5W71C manual transmission number location indicated by arrow

FS5W71C manual transmission with arrow indicating transmission number location

SGI556

1FS5W71C(upper-left of figure)

AUTOMATIC TRANSMISSION NUMBER

Component LocationFig. fig5

RE4R01A automatic transmission number location indicated by arrow

RE4R01A automatic transmission with arrow indicating transmission number location

SGI557

1RE4R01A(upper-left of figure)
