LIFTING POINTS AND TOW TRUCK TOWING
GI-17prose procedureGarage Jack and Safety Stand
WARNING
Never get under the vehicle while it is supported only by the jack. Always use safety stands to support the frame when you have to get under the vehicle.
WARNING
Place wheel chocks at the front wheels when the rear wheels are raised and place wheel chocks at the rear wheels when the front wheels are raised.
CAUTION
Place a wooden or rubber block between safety stand and vehicle body when the supporting body is flat.

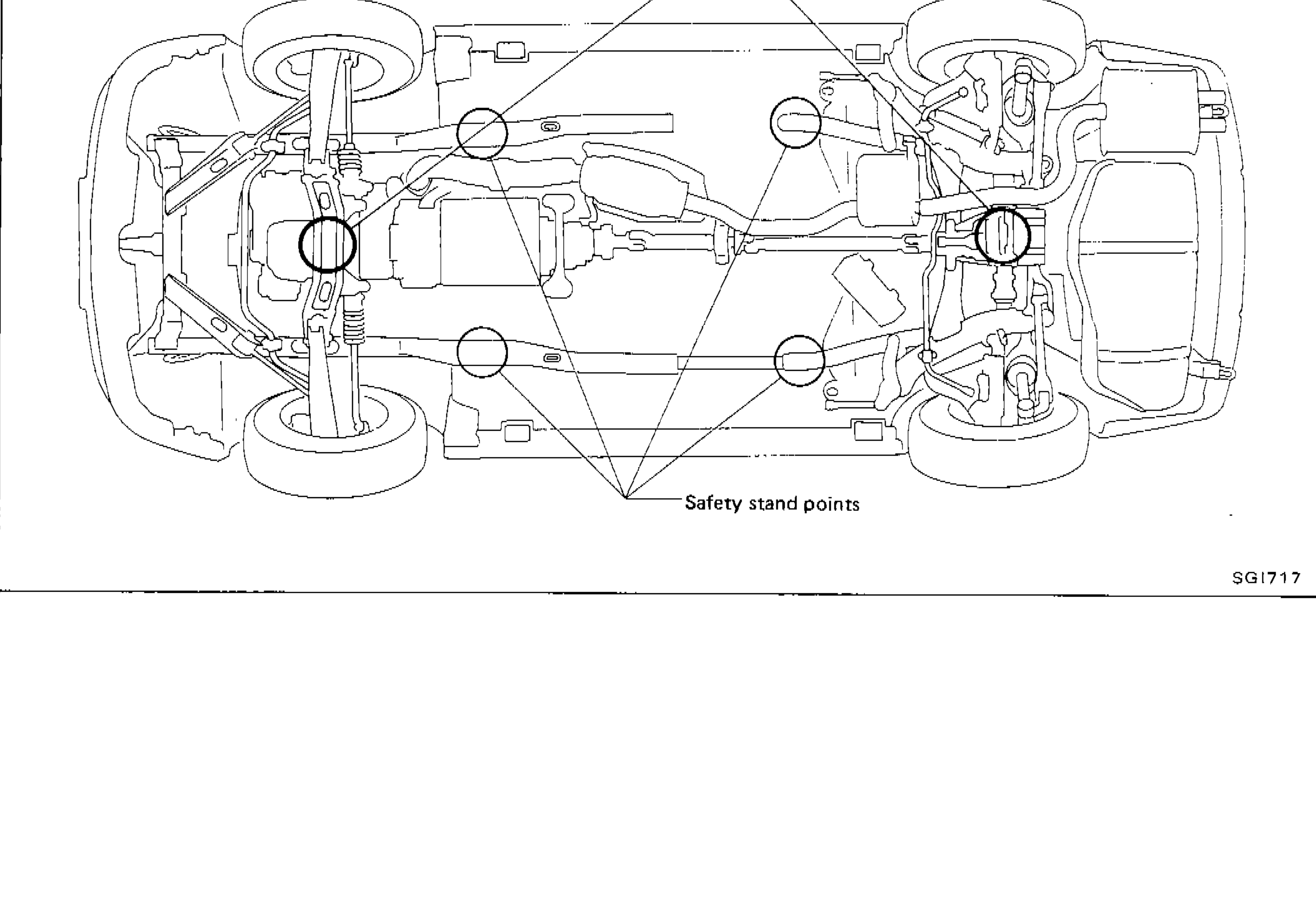

Component LocationFig. fig1
Underside view of vehicle showing garage jack points and safety stand points.
SGI717
1Garage jack points(Four locations near front and rear suspension/subframe areas)
2Safety stand points(Four locations along the lower body/frame rails)
