ON-VEHICLE SERVICE

AT-8prose procedure

Procedures apply to A/T (Automatic Transmission) equipped vehicles.

Revolution Sensor Replacement

  1. 1
    Remove rear engine mounting member from body panel while supporting A/T with jack.

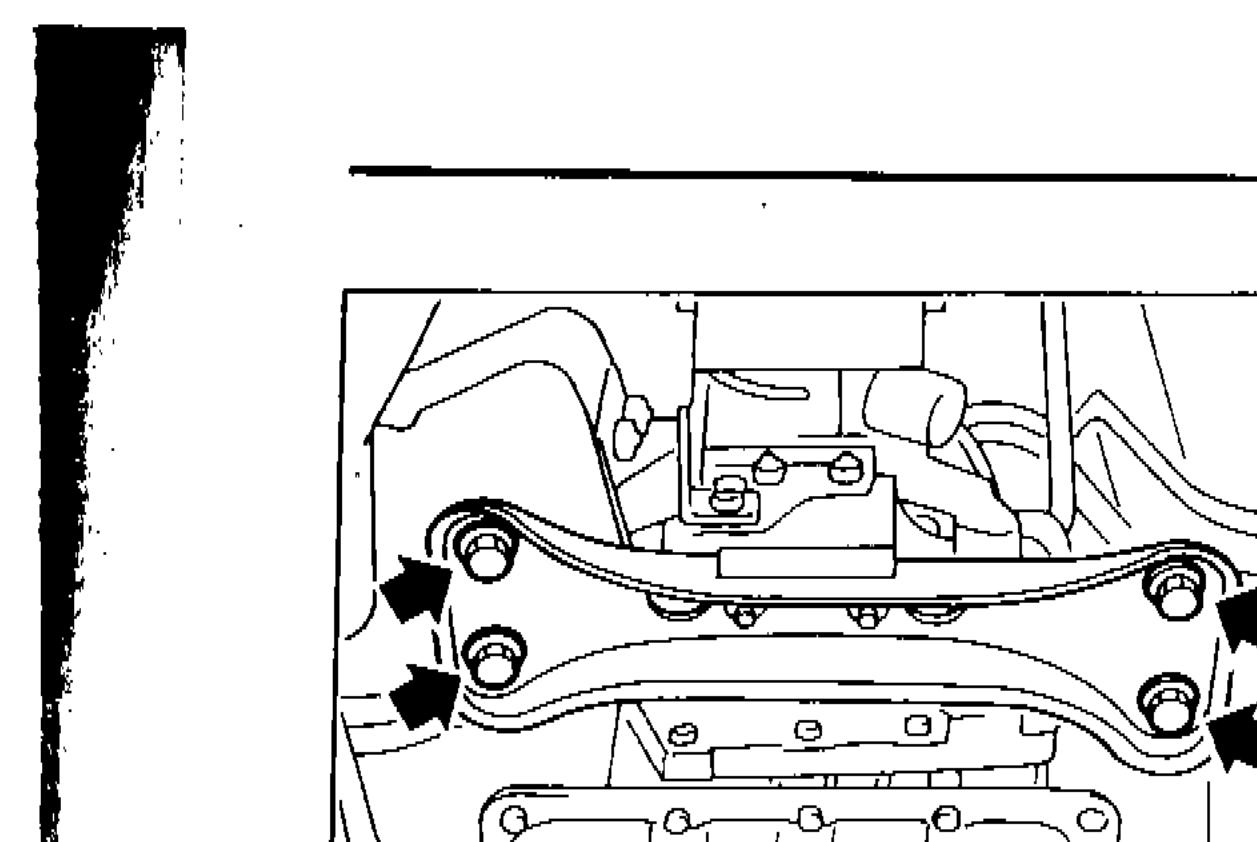

    Rear engine mounting member removal from body panel, showing bolt locations with arrows, front orientation indicated
    SAT800B
  2. 2
    Lower A/T assembly as much as possible.
  3. 3
    Remove revolution sensor from A/T assembly.

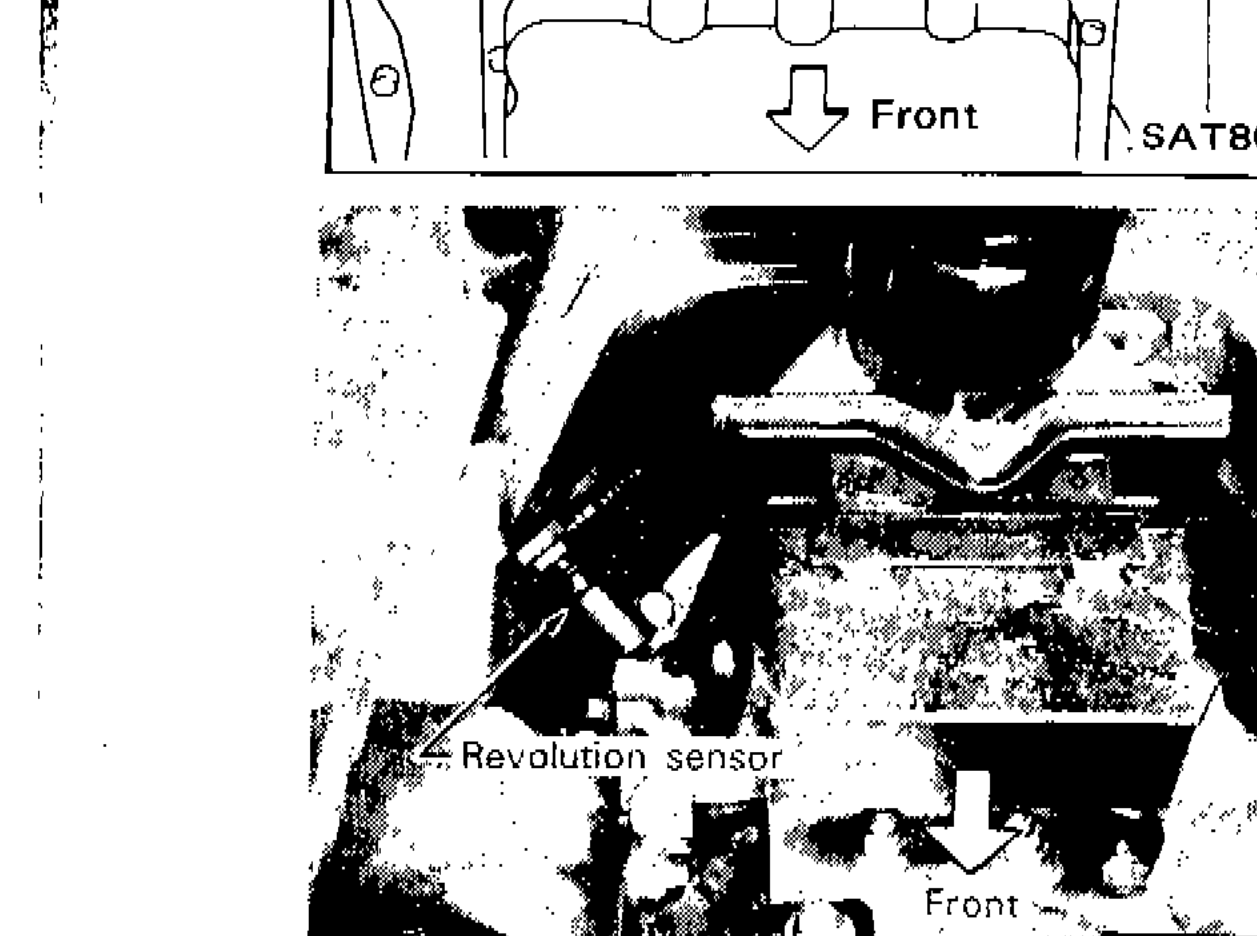

    Photograph showing revolution sensor location on A/T assembly with front direction indicated
  4. 4
    Reinstall any part removed.
    Always use new sealing parts.

Rear Oil Seal Replacement

  1. 1
    Remove propeller shaft from vehicle. — Refer to section PD.
  2. 2
    Remove rear oil seal.

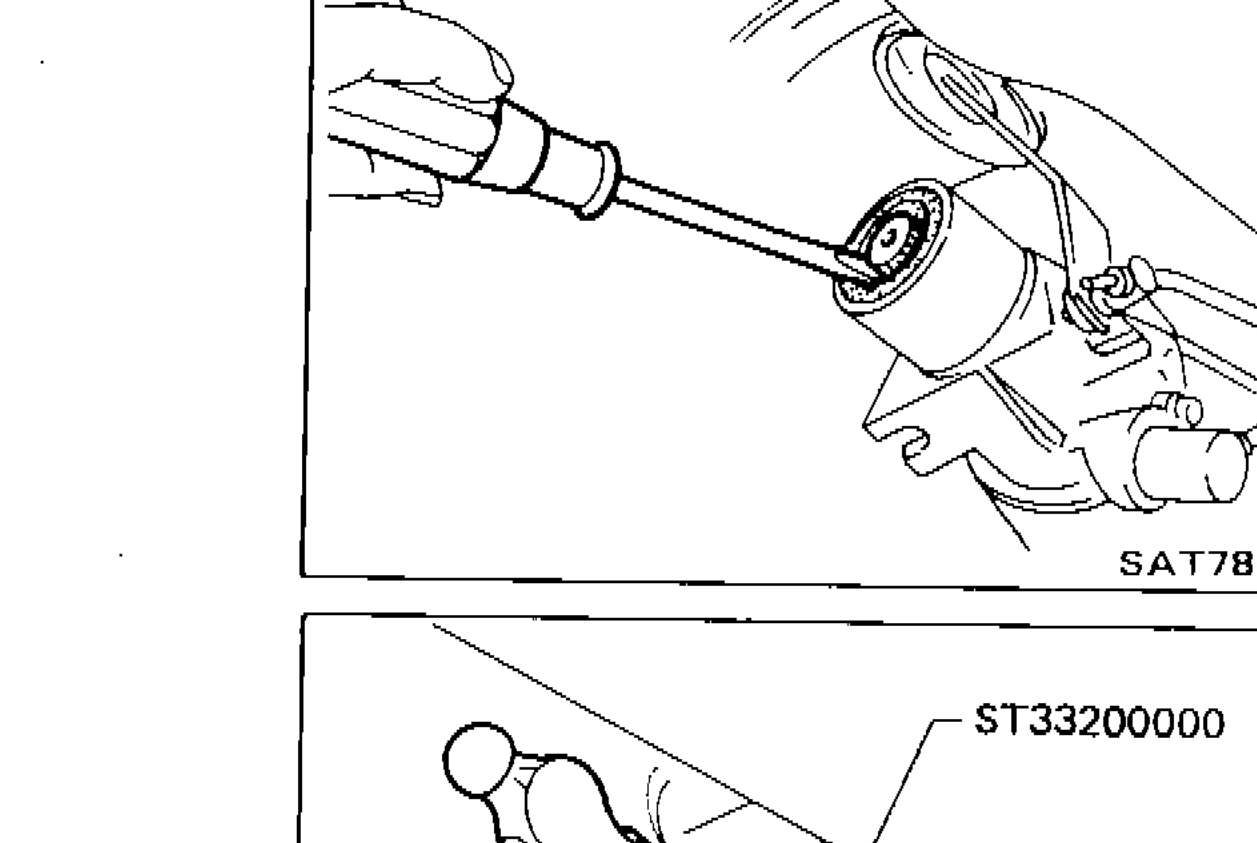

    Illustration showing removal of rear oil seal using a tool
    SAT786B
  3. 3
    Install rear oil seal.
    Apply A.T.F. before installing.

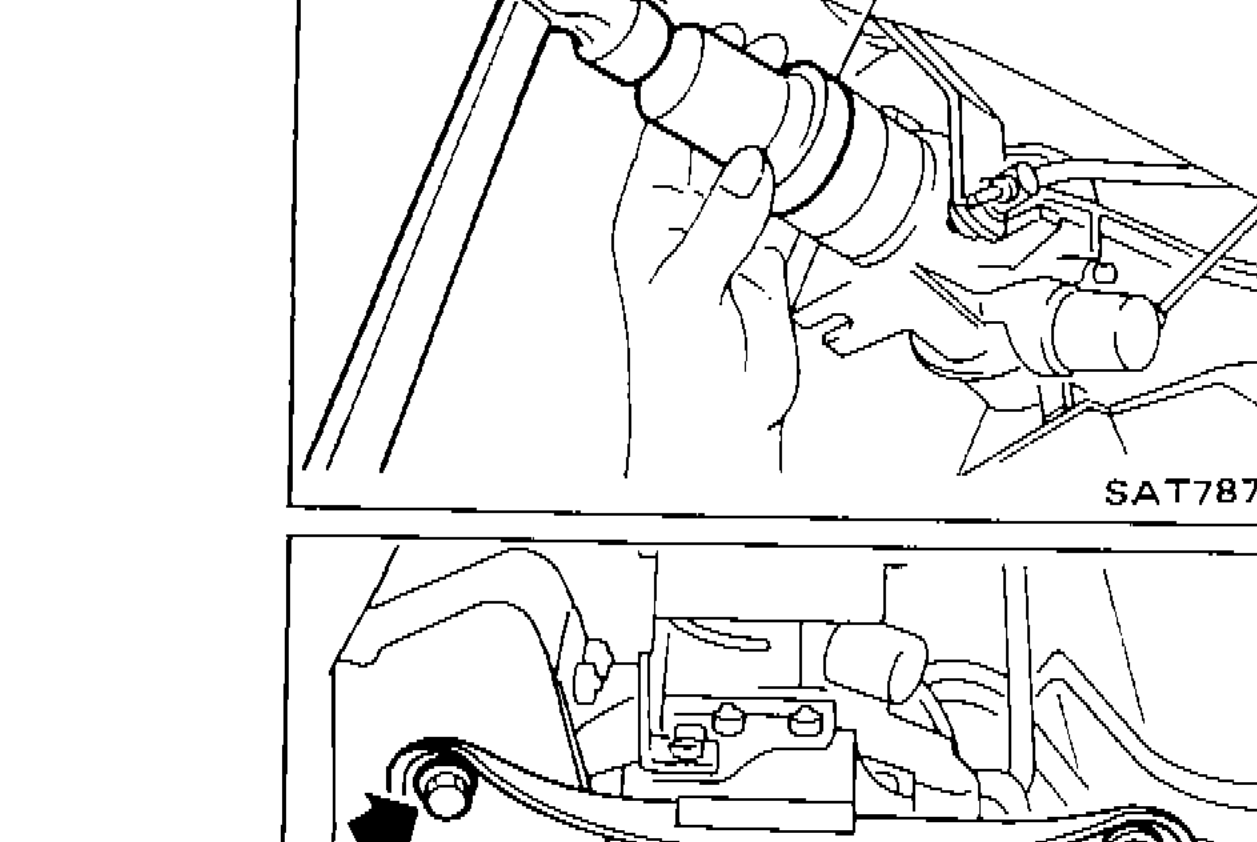

    Illustration showing installation of rear oil seal using special tool ST33200000
    SAT787B
  4. 4
    Reinstall any part removed.

Parking Components Inspection

  1. 1
    Remove propeller shaft from vehicle. — Refer to section PD.
  2. 2
    Remove rear engine mounting member from A/T assembly.

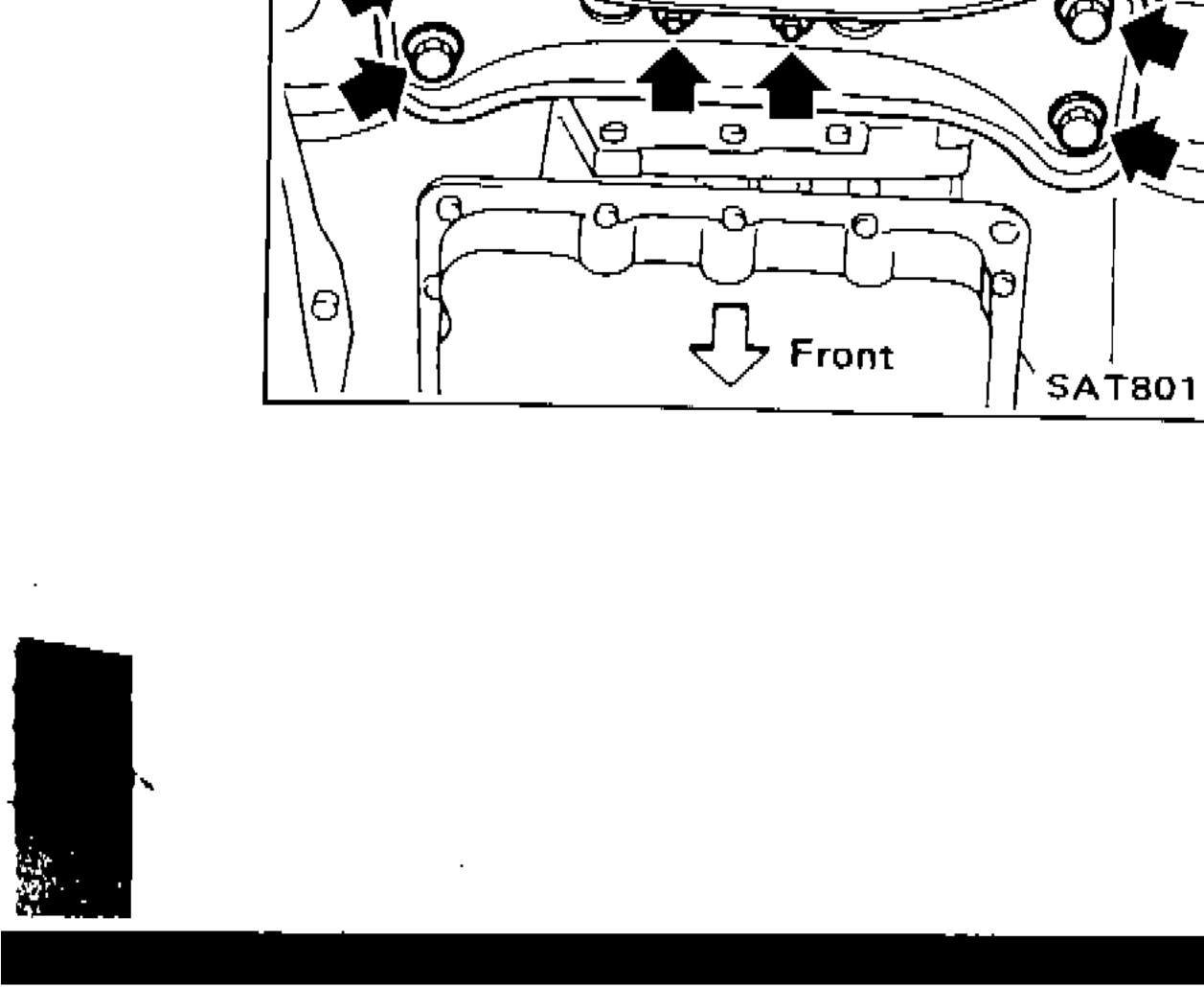

    Rear engine mounting member removal from A/T assembly, showing bolt locations with arrows, front orientation indicated
    SAT8018
