POWER STEERING GEAR AND LINKAGE — Assembly (Cont'd)

ST-21prose procedure
Continued from ST-20

POWER STEERING GEAR AND LINKAGE (Model PR24SC and PR26SC)

Assembly (Cont'd)

Power-steering gear assembly continued

  1. 4
    Tighten end cover assembly with suitable tool.

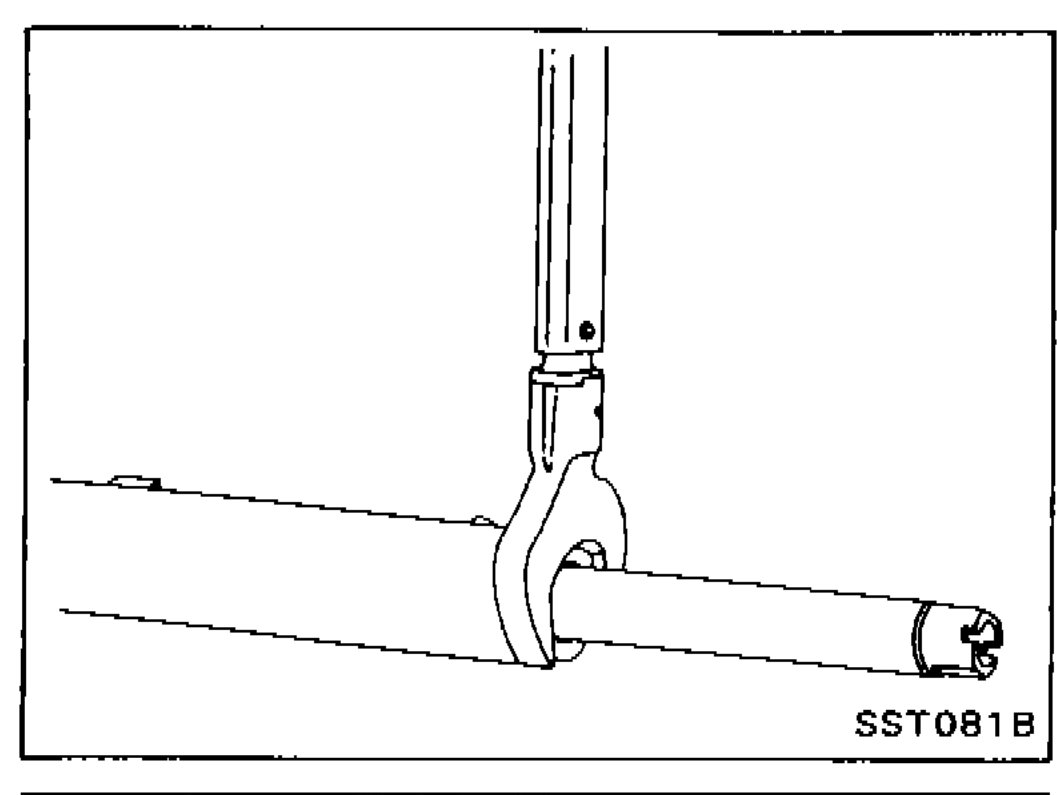

    Tightening end-cover assembly with a suitable two-pin spanner.
    SST081B
  2. 5
    Fasten end cover assembly to gear housing by staking.

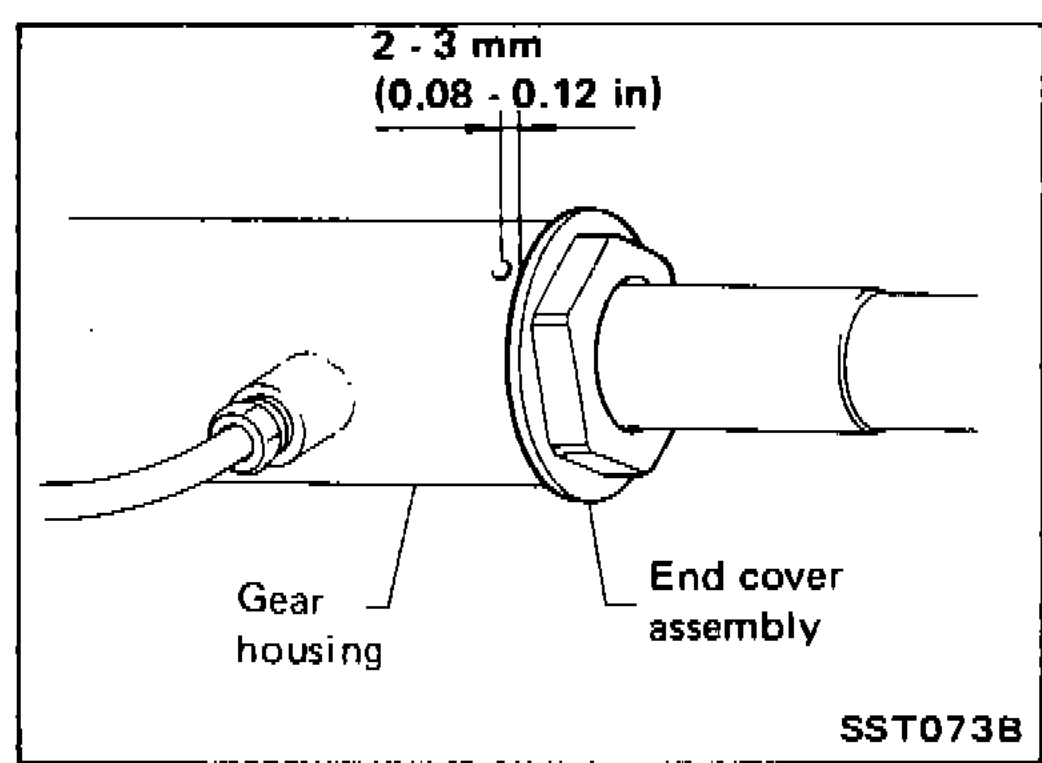

    End-cover assembly staked into gear-housing tube; staking depth of 2-3 mm (0.08-0.12 in) shown.
    SST073B
  3. 6
    Set rack gear in neutral position.
    Rack assembled in gear housing with measurement length L marked at both tie-rod ends to set the rack to neutral position.
    SST086B
  4. 7
    Coat seal lip of oil seal with multi-purpose grease and install new pinion oil seal to pinion housing of gear housing with suitable tool.
    Make sure lip of oil seal faces up when installed.

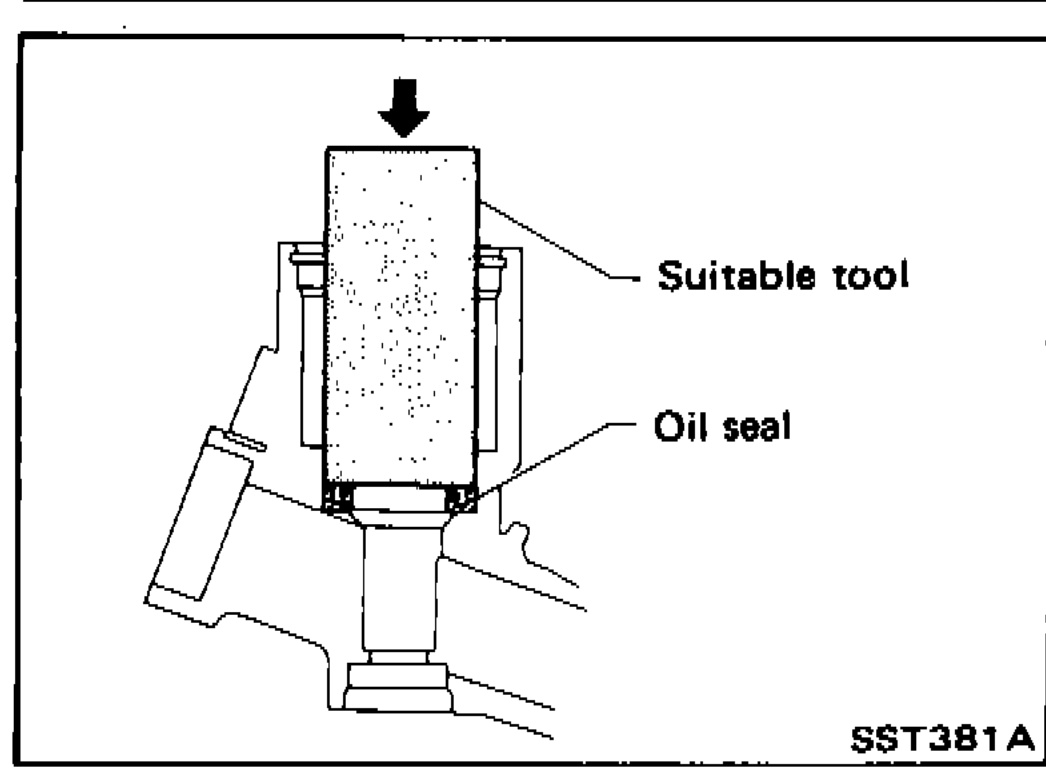

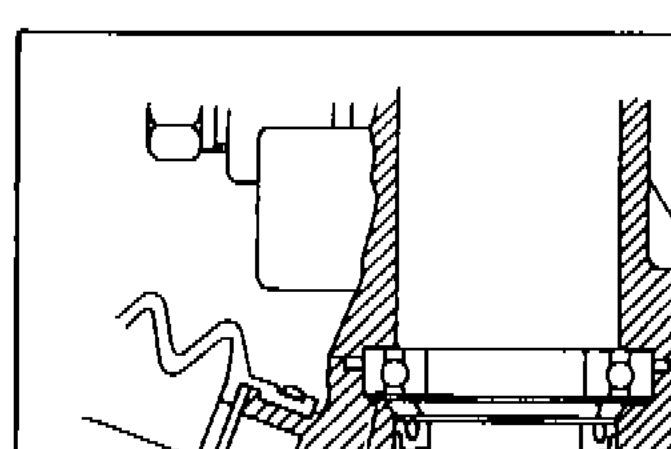

    Suitable tool / drift pressing the new pinion oil seal into the pinion housing of the gear housing; arrow indicates direction (lip up).
    SST381A
  5. 8
    Install pinion bearing adjusting shim(s).
    Whenever pinion assembly, gear housing and rear housing are disassembled, replace shim(s) with new ones. Always use the same number of shim(s) when replacing.

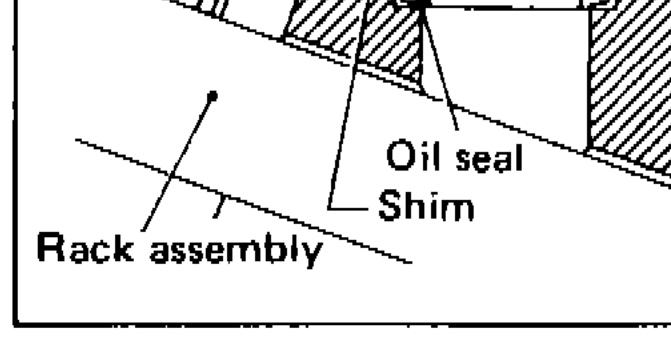

    Cross-section view of pinion bearing area with adjusting shim and oil seal sitting between the gear housing and the rack assembly.
    SST074B
End-cover staking depthStep 5.
2 - 3mm (0.08 - 0.12 in)
Rack neutral length LStep 6.
Refer to S.D.S.
