POWER STEERING GEAR AND LINKAGE — Disassembly (Cont'd) and Assembly

ST-20prose procedure
Continued from ST-19

POWER STEERING GEAR AND LINKAGE (Model PR24SC and PR26SC)

Disassembly (Cont'd)

Disassembly continued from ST-19

  1. 11

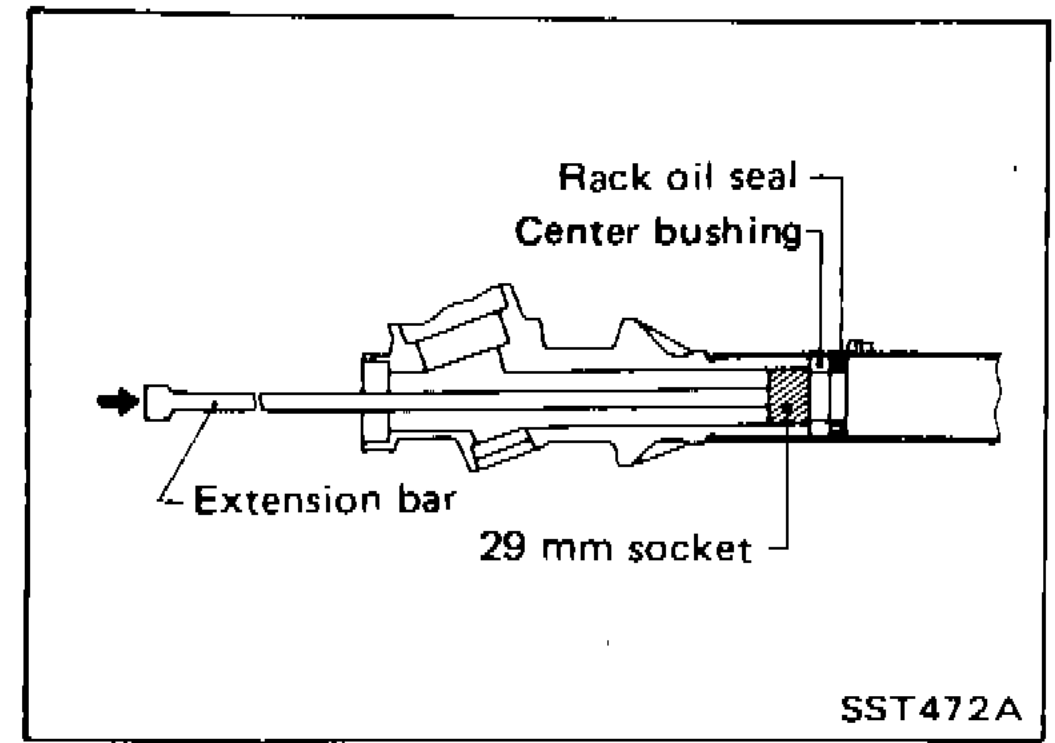

    Remove center bushing and rack oil seal using tape wrapped socket and extension bar.
    Do not scratch inner surfaces of pinion housing.
    29 mm socket on extension bar (with tape wrapping) being used to push out the center bushing and rack oil seal from the pinion housing.
    SST472A

Assembly

Power-steering gear assembly

  1. 1

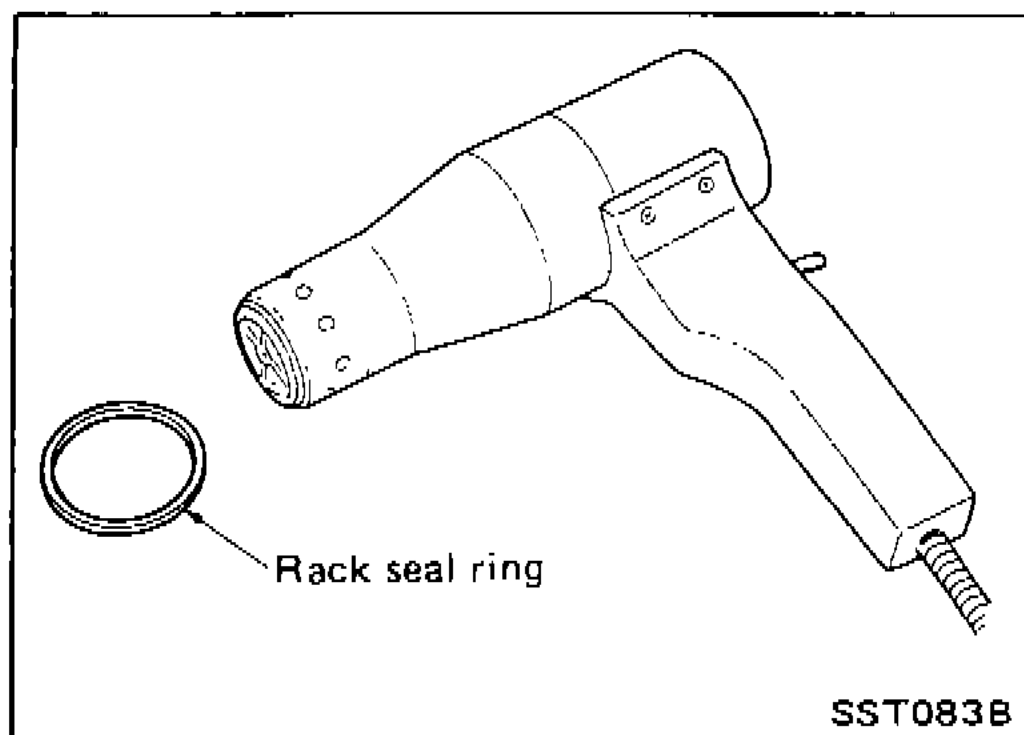

    Using a heat gun, heat rack seal ring (made of Teflon) to approximately 40°C (104°F) and install it onto rack with your hand. Then using Tool, compress periphery of rack seal ring (made of Teflon) to position and secure it on rack.
    Always insert the tool from the rack gear side.
    Heat gun warming a teflon rack-seal ring before installation onto the rack.
    SST083B
  2. 2
    Insert rack oil seal.
    Place plastic film into rack oil seal to prevent damage by rack teeth.
    Always remove plastic film after rack oil seal is positioned properly.
    Make sure lips of rack oil seal face each other.
    Plastic film placed over the rack teeth to protect the rack oil seal during installation; rack oil seal slid onto rack with film in between.
    SST201A
  3. 3
    Install center bushing and rack oil seal with rack assembly.
    Two views of the gear housing showing the center bushing and rack oil seal installed at the pinion-housing end with rack assembly in place.
    SST830A
Heat gun temperature for rack seal ringStep 1 — soften teflon ring before install.
≈ 40°C (104 °F)
