WINDSHIELD AND WINDOWS — Side Window
BF-31prose procedureSide Window
Side window is a molded type. During removal or installation, observe the following instructions.
Side window removal / installation
- 1Cut sealant in the same manner as that outlined under "Windshield".

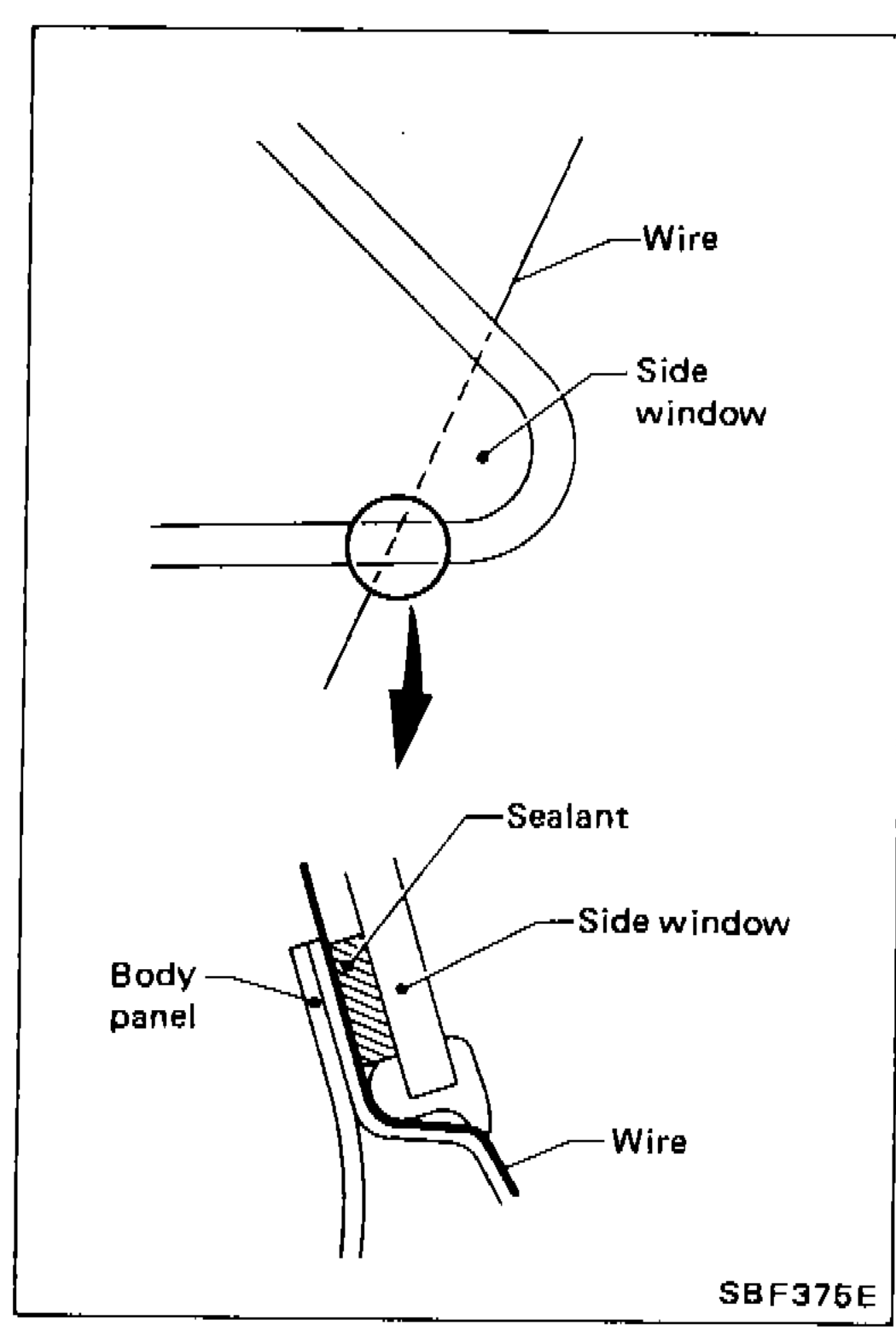

SBF375E - 2Be careful not to scratch molding when cutting sealant. If molding is scratched, repair.
- 3Remove clips and locating pins which have been exposed from vehicle body.
| Specification | Value |
|---|---|
| Side-window glass-edge offset (insets A / C) | 13mm (0.51 in) |
| Side-window front-edge body-panel overlap (inset B) | 25mm (0.98 in) |
| Sealant bead height (all portions) | More than 12mm (0.47 in) |
| Sealant bead base width (all portions) | More than 7mm (0.28 in) |
Side-window glass-edge offset (insets A / C)
13mm (0.51 in)
Side-window front-edge body-panel overlap (inset B)
25mm (0.98 in)
Sealant bead height (all portions)
More than 12mm (0.47 in)
Sealant bead base width (all portions)
More than 7mm (0.28 in)
